Waveform Aluminum Pedals
Waveform Aluminum Pedals

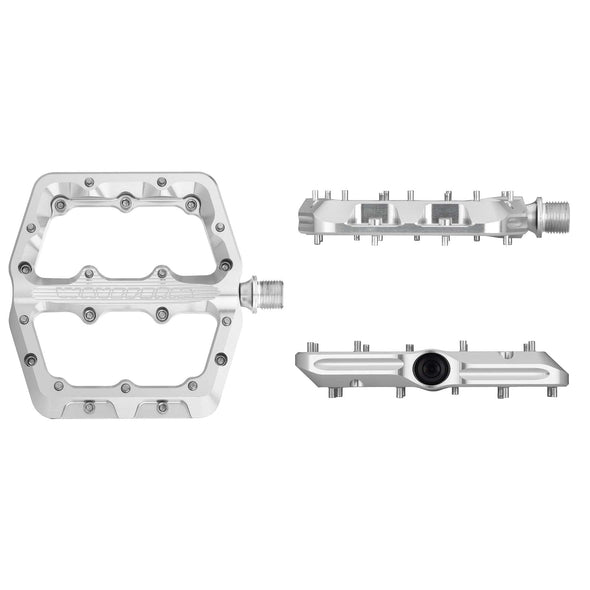

Wolf Tooth Waveform Aluminum Pedals are designed for all-mountain riding, from XC to downhill. They are engineered to lock in your foot with a shape that matches your shoe, rear-loading pins for grip, and a dual-concave profile to further cradle your feet.

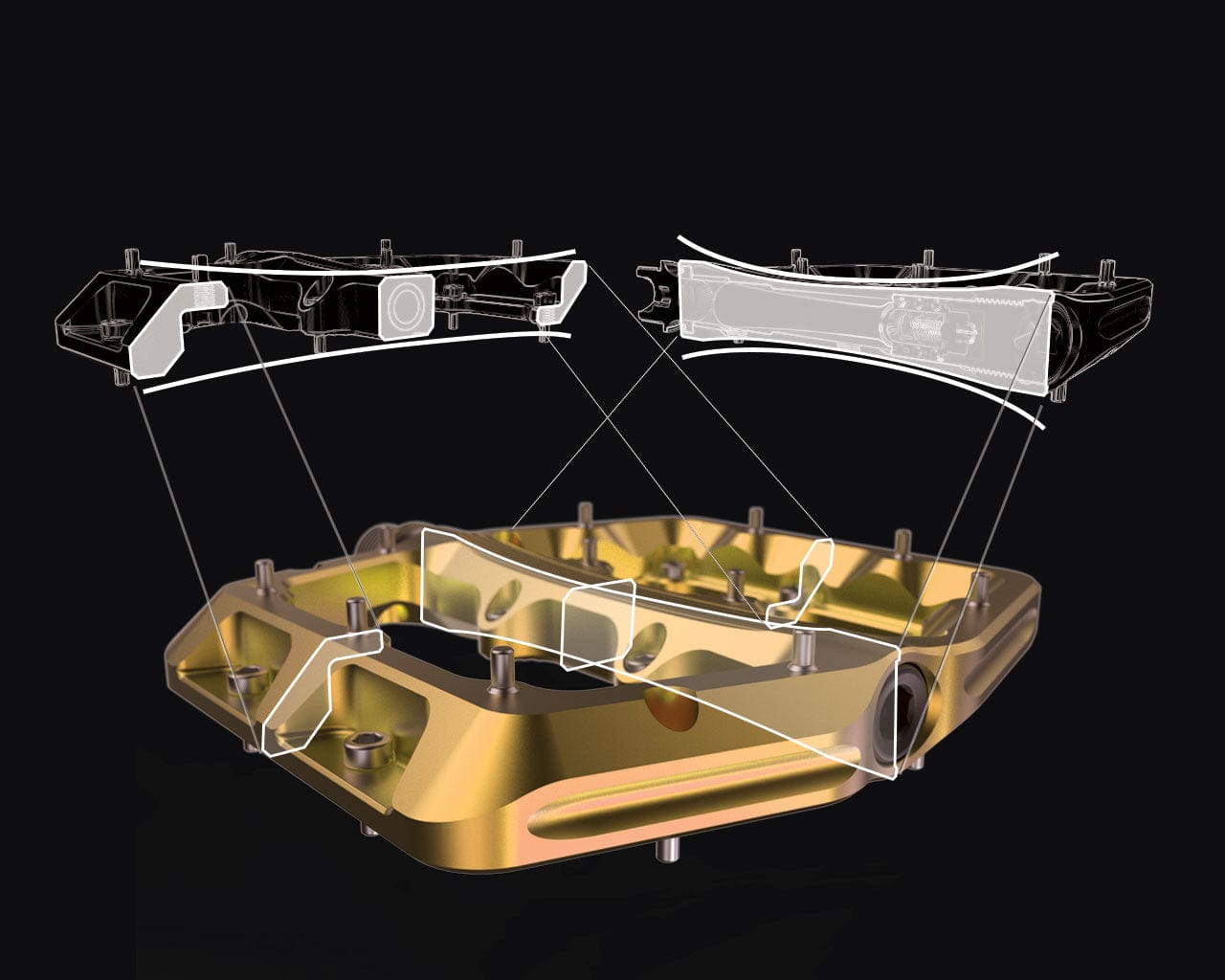

Dual-concave profile

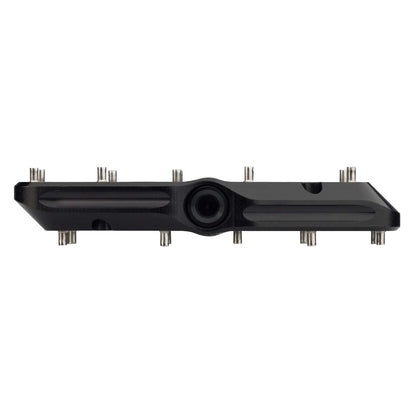

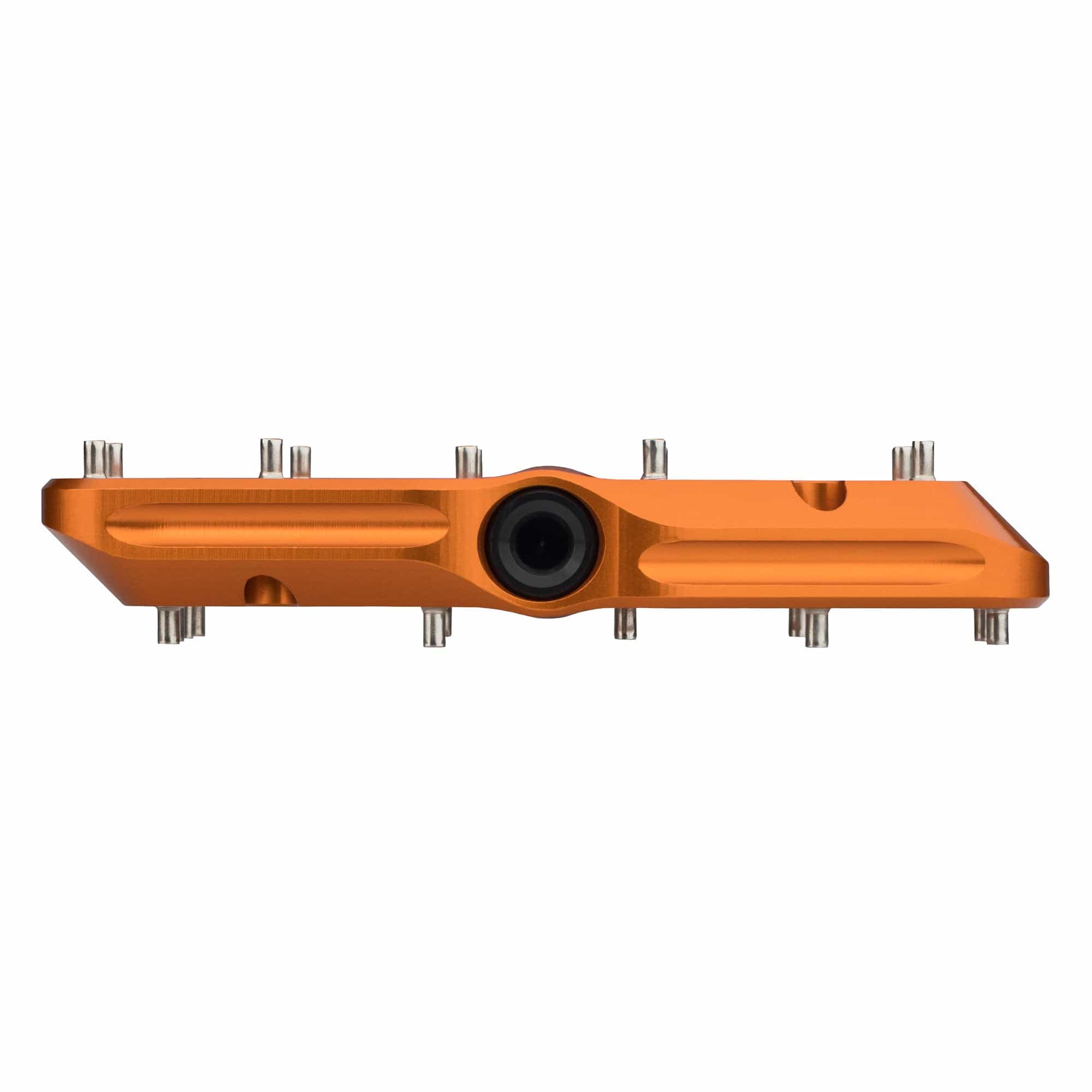

Waveform pedals are 14mm thick on the perimeter and just 12.5mm thick in the center. This profile cradles your foot, front to back and side to side.
Extra grip
Each side of the pedal has 11 stainless steel rear-loading pins for loads of traction. An additional six pins ship with each set of pedals and they are available as replacement parts.

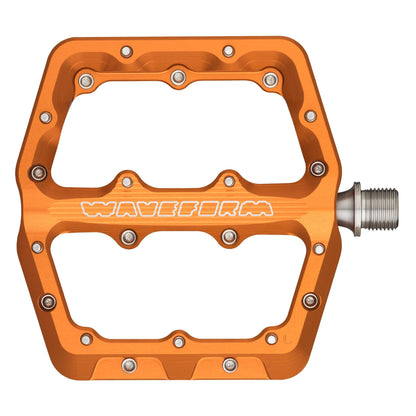

Shaped with purpose

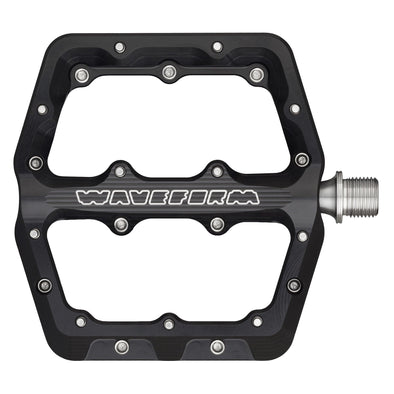

The shape of Waveform Aluminum Pedals matches the footprint of your shoe.
Reliable Performance
Three low-friction, fully sealed cartridge bearings and one igus bushing with a custom radial seal protect internal components against trail debris for riding in all conditions.

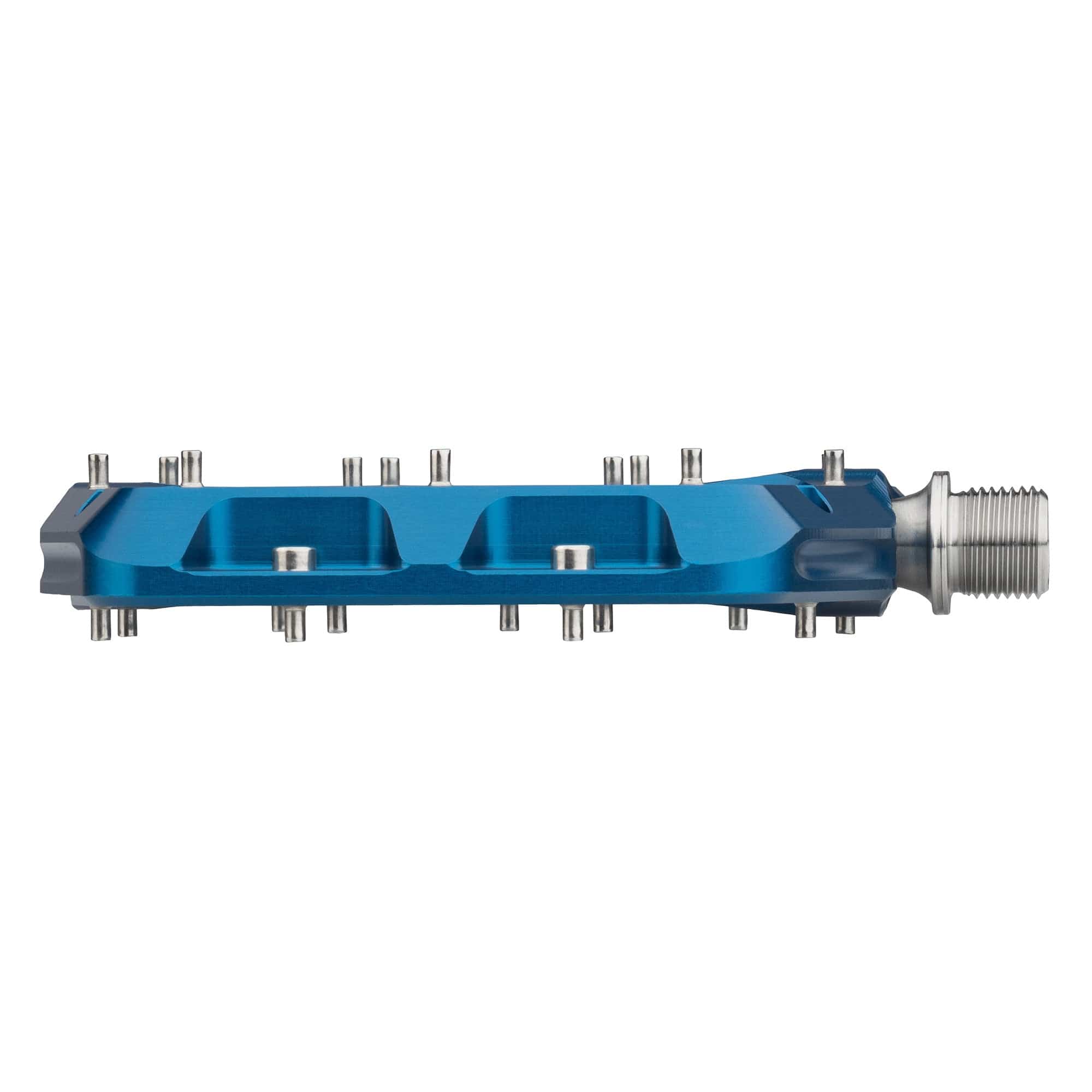

Tapered Edges

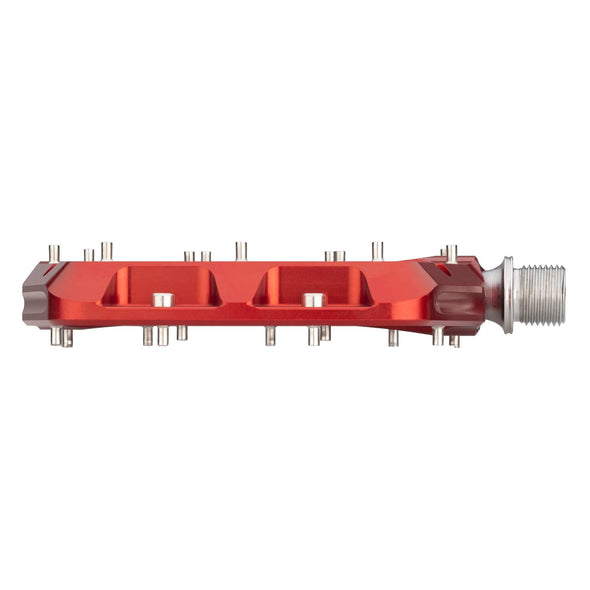

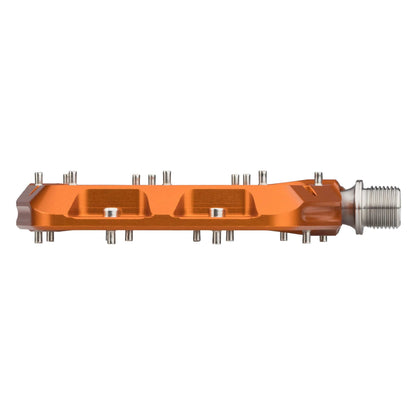

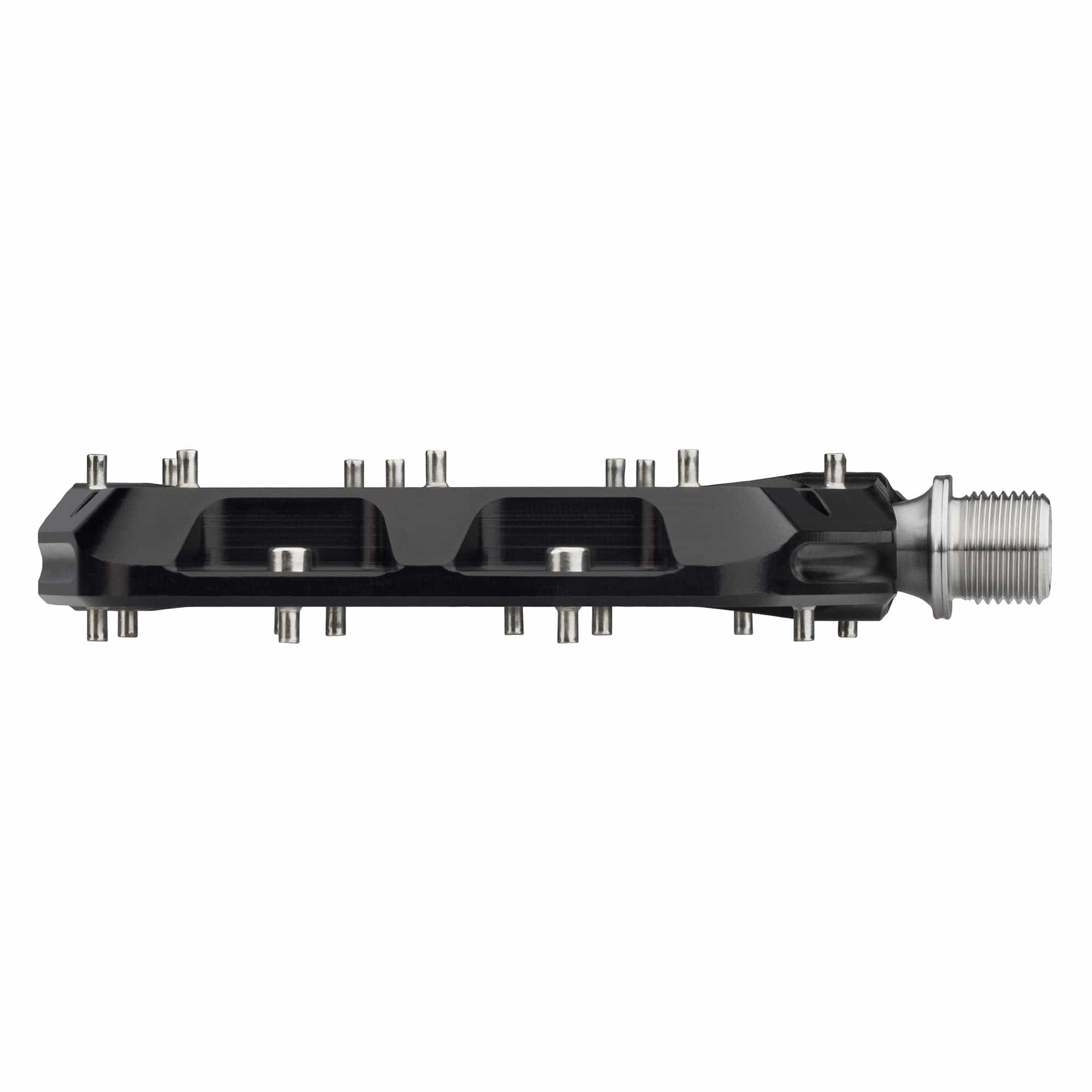

Large, tapered leading edge to deflect pedal strikes on rocky, rooty terrain.
Eight Colors

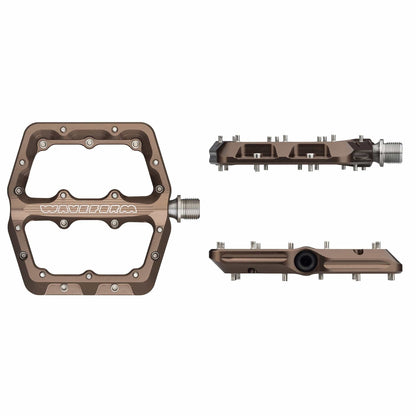

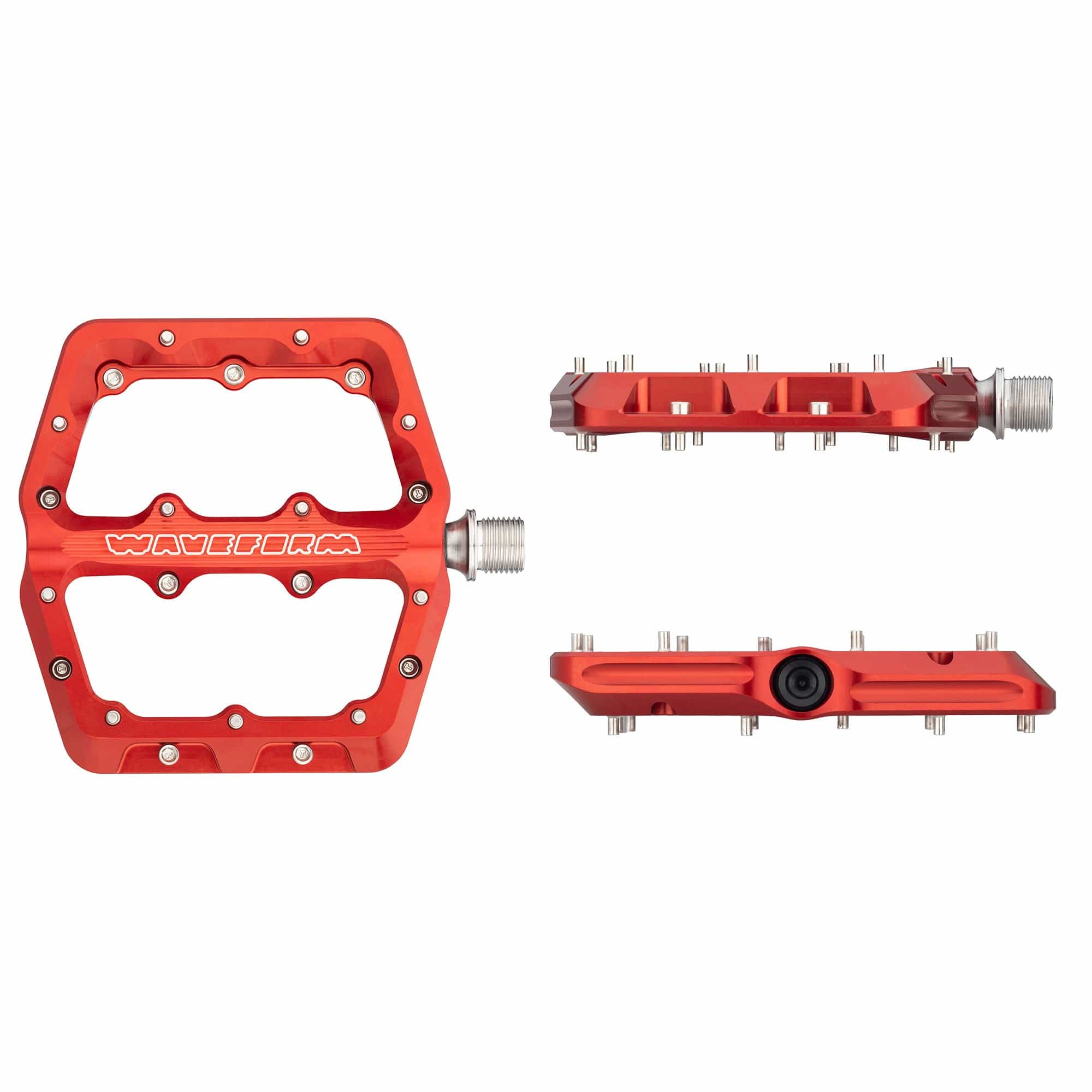

Four new colors of Espresso, Olive, Red, and Raw Silver join the existing Black, Blue, Orange, and Ultraviolet Purple.

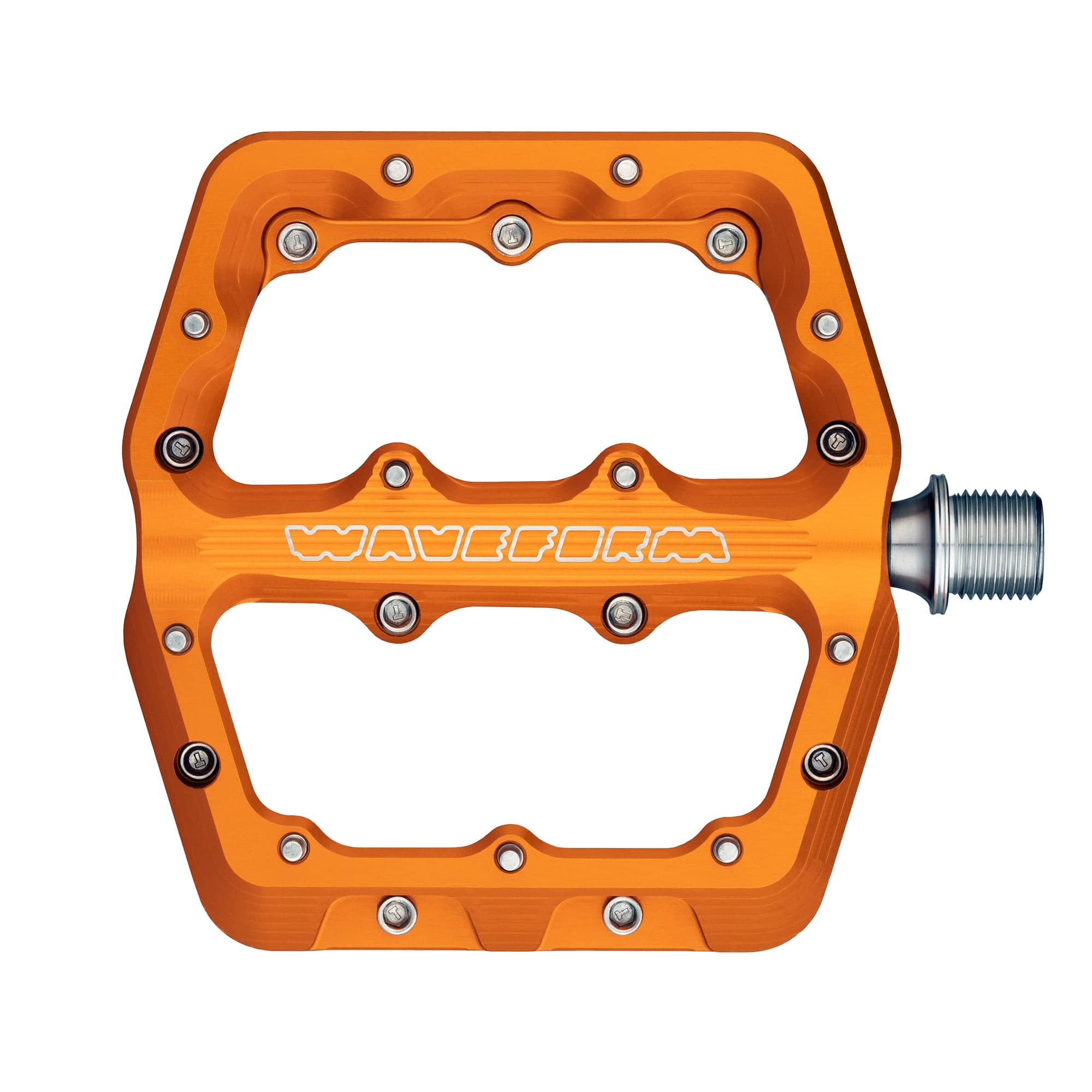

Two sizes
Large: 112mm x 106mm - 384g
Small: 105mm x 99mm - 373g
Each size is proportionally scaled to match the silhouette of your shoe based on foot size or pedal size preference.
Use our 1:1 Printout to compare the sizes with your shoe:
Machined and Assembled in USA
Waveform Aluminum Pedals are CNC machined here in our Minnesota machine shop.
Exceeds all EN/ISO Standards
Safety is our priority. Waveform Aluminum Pedals have undergone strenuous static and fatigue stress tests that exceed EN/ISO safety standards.
Five-Year Warranty
Wolf Tooth Waveform Aluminum Pedals are warrantied for defects in material or workmanship for a period of five years from the date of purchase.
![]Waveform pedal parts from Wolf Tooth, machined in Minnesota, USA, spread across a workbench.](http://www.wolftoothcomponents.com/cdn/shop/files/WolfTooth_ReplacementParts_Waveform-225-2.jpg?v=1673392505&width=2048)
We believe in your right to be able to fix your components. Crashes happen, parts get misplaced, things go bump in the night. All individual parts are available as replacement parts.
100% USER SERVICEABLE
Service for Waveform Aluminum Pedals is simple and can be done at home.
REPLACEMENT PARTS AVAILABLE
Each of the components of Waveform Aluminum Pedals can be purchased separately, from the body to the bearings.
TUTORIAL VIDEOS
A video guide for service is available so you can disassemble, service, and reassemble Waveform Aluminum Pedals.
Wolf Tooth Waveform Aluminum Pedals are designed for all-mountain riding, from XC to downhill. The pedals come in two sizes, and are proportionally scaled to provide a supportive platform, shaped to match the footprint of your shoe. They have a slim, dual-concave profile that is 14mm thick at the perimeter and just 12.5mm thick in the center, cradling your foot for optimal pedal feel. Each side of the pedal has 11 stainless steel rear-loading pins for loads of traction. The design also features a large, tapered leading edge to deflect pedal strikes on rough terrain. A custom radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.
- Two sizes: Large is 112mm x 106mm, small is 105mm x 99mm
- Three high-precision, low-friction sealed bearings designed specifically for this pedal, with one igus bushing
- Custom radial seal to protect internal hardware from water, dirt, and trail debris
- Eleven stainless steel, rear-loading 4.5mm pins per side
- Dual Concavity secures your feet firmly in place on the pedals, both front-to-back and side-to-side
- Tapered leading edge deflects pedal strikes.
- Available in eight colors
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
- Pins can be removed for desired grip by using a 3mm hex tool.
- Includes six extra grip pins. More pins are available on the replacement parts page. See i nstallation instructions for recommendations on installing pins.
Compatibility
- Fits all cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Related Products
Waveform Pedals Replacement Parts
Crankskins Crankarm Protectors
Tech Specs
Waveform Pedal Replacement Parts
Waveform Pedals Factory Service
Weight: Large set 384g | Small set 373g
Size (length x width): Large: 112mm x 106mm |. Small: 105mm x 99mm
Pin Height: 4.5mm
Material: Platform: 6061-T6 Aluminum; Axle: 17-4 PH Stainless Steel; Pins: 304 Stainless Steel
Made in the USA
