Lithic Carbon Fat Fork
$649.95
LITHIC-FAT
Out of stock
Pairs well with

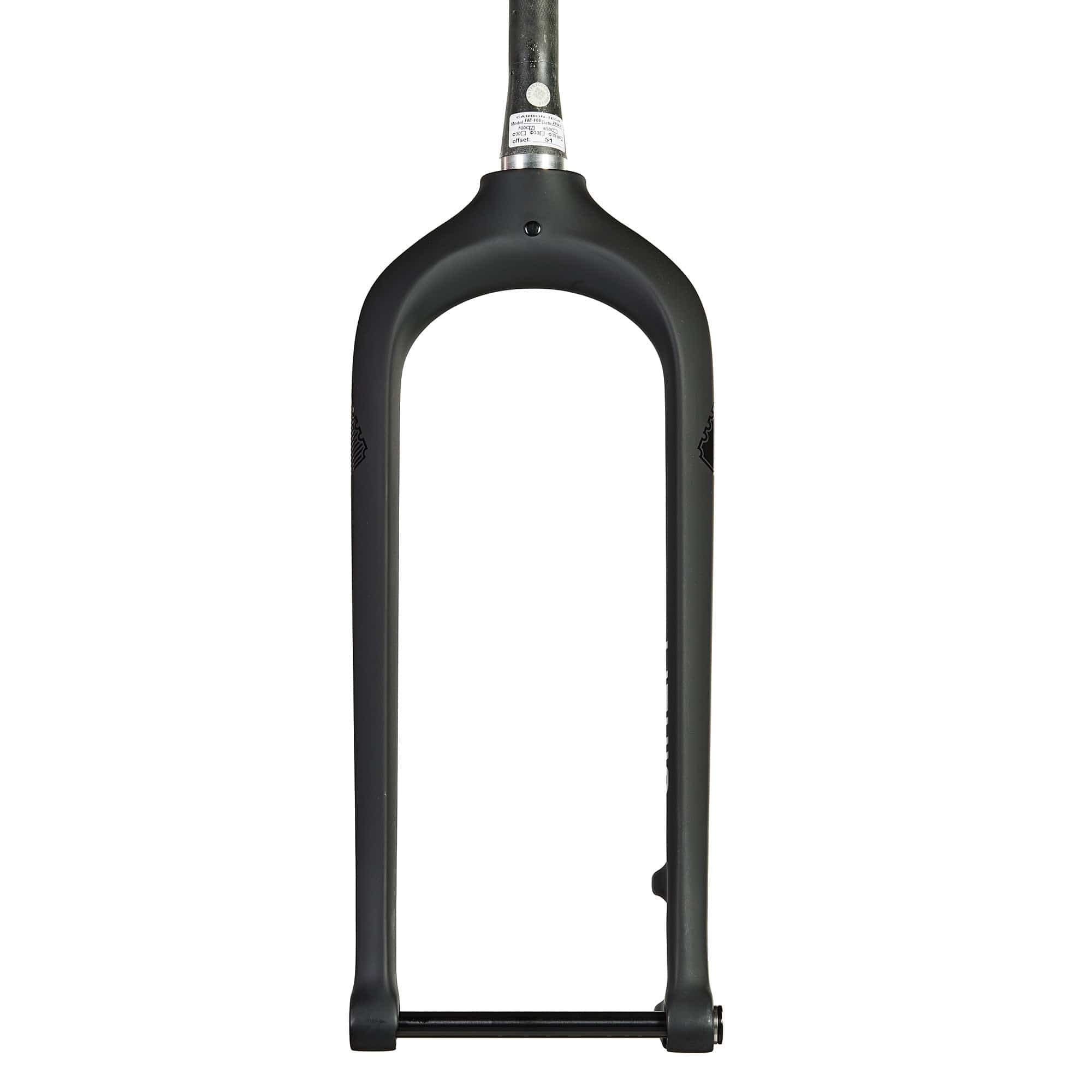

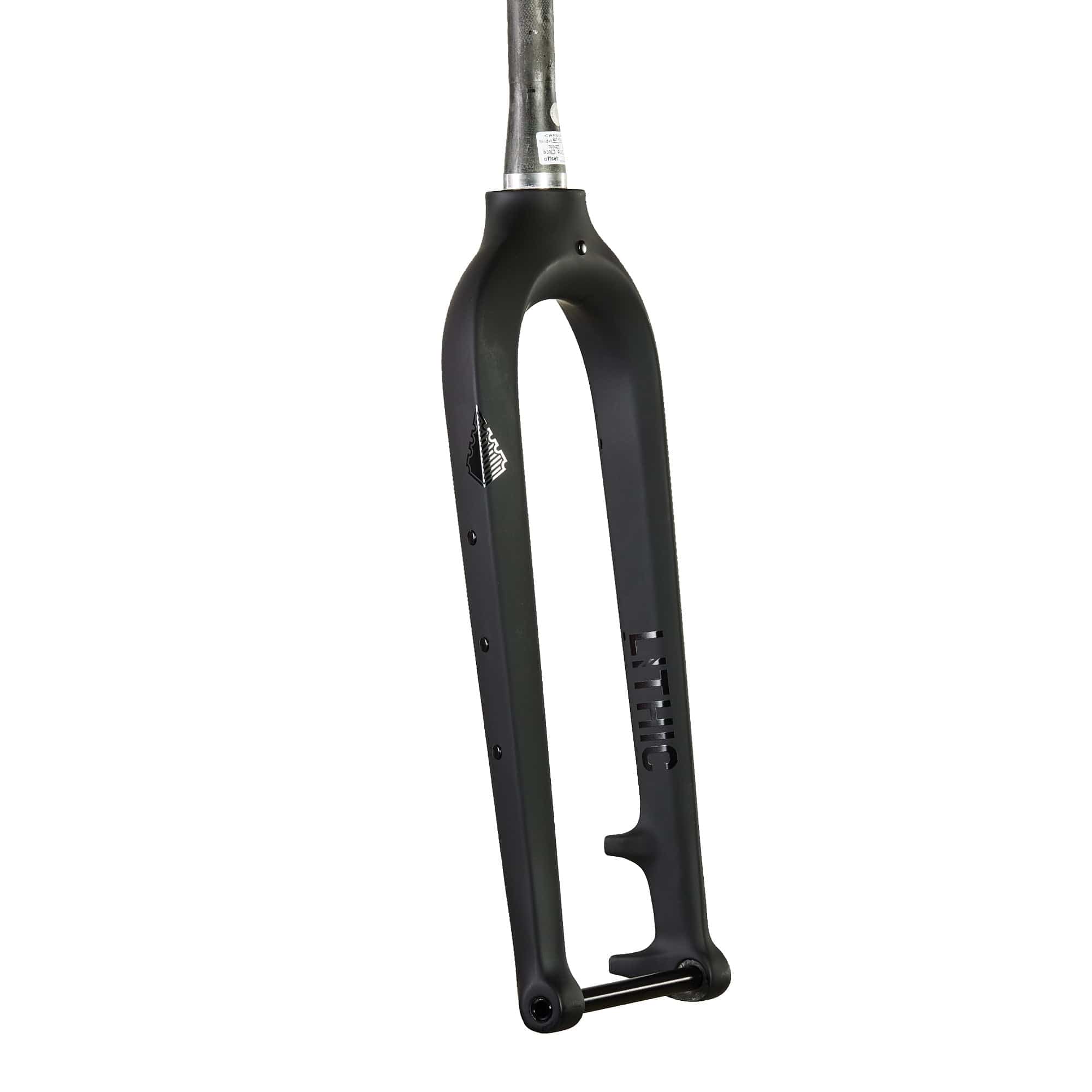

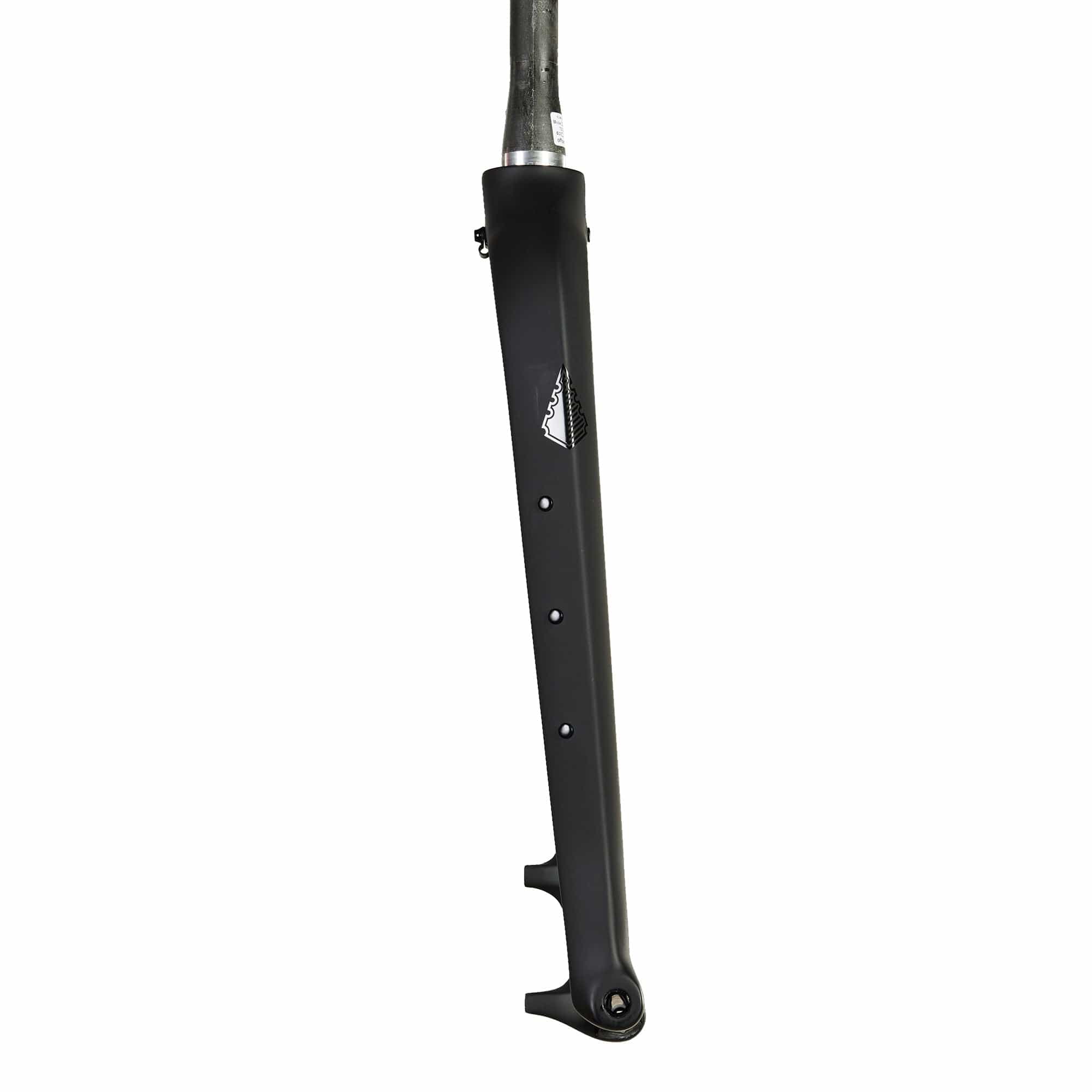

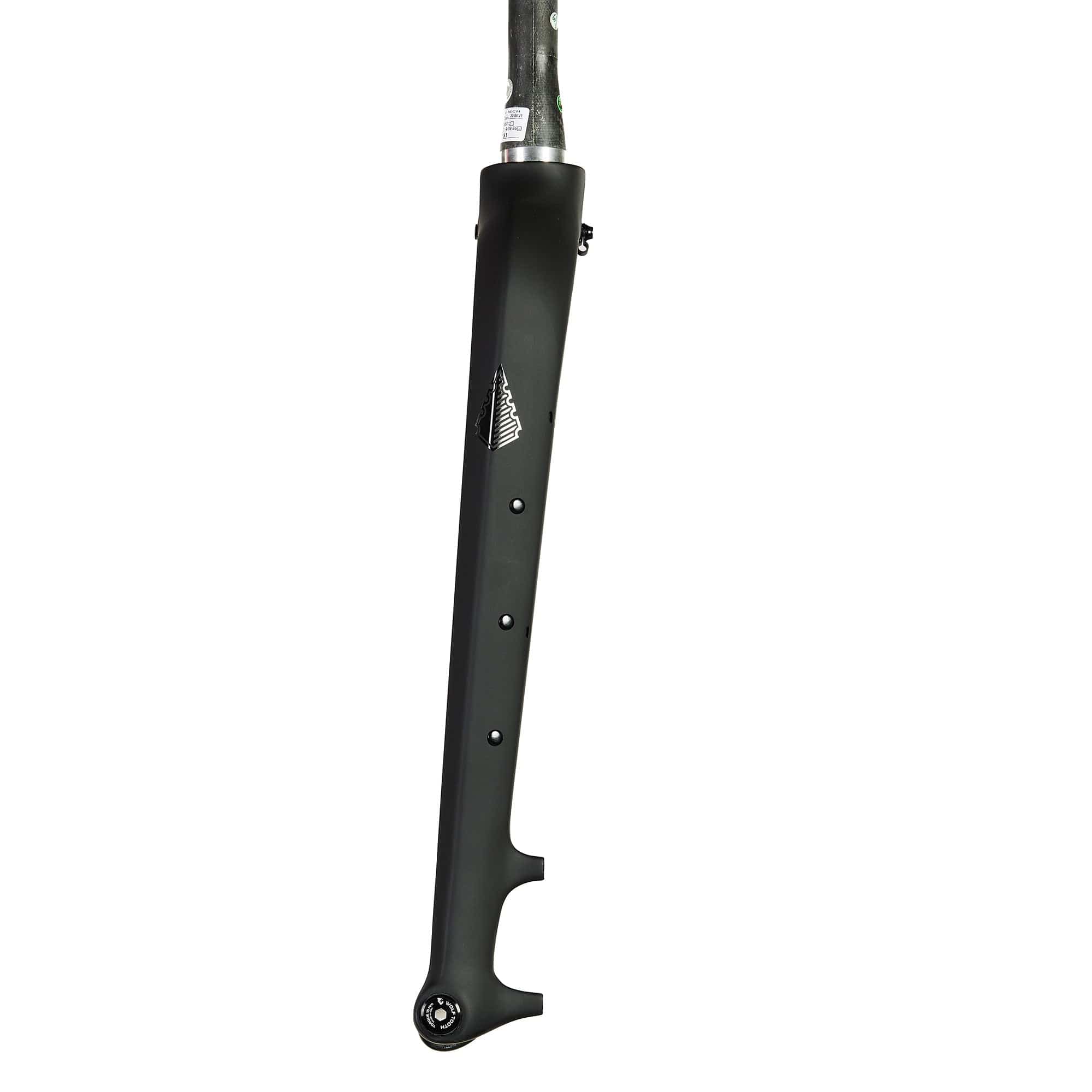

The Lithic Fat Fork is a lightweight, versatile carbon option for fat bikes. This is a fork that Otso customers use for fat bike racing, bikepacking, and winter exploration. The 485mm axle-to-crown makes it compatible with suspension-corrected frames in place of a 100-120mm suspension fork. It has clearance for 26” x 5.4” tires and three-pack mounts for exploration, while the 740g weight makes it a light option for shorter fat bike races.
Specs
| Material | Carbon |
| Weight (including axle) | 740g |
| Steerer Tube Length | 275mm |
| Steerer Tube Taper | 1 1/8" - 1 1/2" |
| Rake/Offset | 51mm |
| Axle To Crown | 485mm |
| Suspension Correction | 100mm |
| Brake Mount | 160mm Post native |
| Hub Spacing | 15x150mm |
| Max Rotor Size | 203mm |
| Max Tire Clearance | 26x5.4" on 100mm rim |
| Max Rider Weight | 250 lbs |
| Max Load (3 pack mounts) | 2.5kg [5.5 lbs] per side |
| Axle Torque | 15Nm |
| Compression plug torque | 8Nm |
| Stem spacers above stem | 10mm MAX |
| Stem spacers below stem | 40mm MAX |
| Stem steerer tube clamp torque | 6Nm MAX |
| Warranty | 2 years |
Included with fork:
• Wolf Tooth thru axle
• Compression plug
• Three M5 mounts on each side for carrying bottle cages or gear
• Hidden fender mount/brake cable clip
