EnCase System Bar Kit One

In-bike storage and essential riding tools that can meet the needs of almost any trailside repair. Durable, flexible storage sleeves make for a secure, clean place to stow EnCase® System tools or other small items. Fits most mountain bars and most road bars thanks to a storage sleeve with a customizable rubber flap that can be cut to meet your handlebars inner diameter.

The EnCase System: Bar Kit One includes a Hex Bit Wrench Multi-Tool, a Chain + Tire Plug Multi-Tool, and two Storage Sleeves.

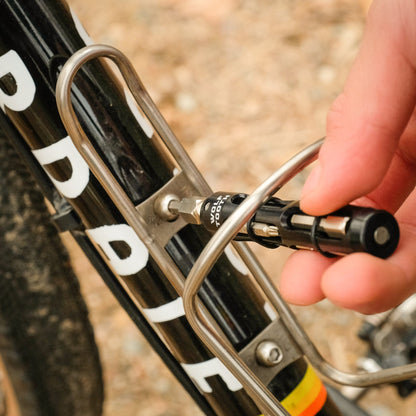

HEX BIT WRENCH MULTI-TOOL

• 14 functions (spoke wrench for 0.127" (3.23mm) nipples; valve core wrench; flat head #3.5; Phillips #2; 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, and 8mm hex; and T10, T25, and T30 Torx compatible)
• Magnets & O-rings keep all parts in place
• Ball detent swivel head helps access hard-to-reach places
• Handle doubles as breaker bar for extra torque when tool head is bent
• Store in handlebar with EnCase Storage Sleeve
• Magnet on the bottom of tool for convenient storage on steel bike stands (or refrigerators)

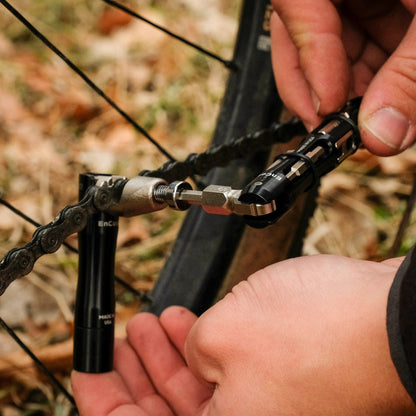

CHAIN + TIRE PLUG MULTI-TOOL

• Compatible with all bicycle chains including 12-speed
• Inserter tool and bacon strips plug holes in tubeless tires
• Five strips included; refills available (EnCase System Extras)
• Hardened steel pin for lifetime durability
• Requires 4mm hex for chain tool driver which can be found on the EnCase Hex Bit Wrench
• Compact design of the chain tool is for removal of chain pins only. Always carry a spare master link for chain repair.

STORAGE SLEEVES

• Vibration-damping material and snug fit prevents rattling
• Durable precision-machined aluminum end caps
• Custom fit rubber flap can be trimmed to fit in smaller diameter bars
• Bonus storage space—fits a presta-to-schrader adapter and valve core or a master link (both sold separately EnCase System Extras)
• Includes Drop Bar Fit Kit to customize fit for larger-diameter road handlebars



Compatibility

• Fits most mountain handlebars and road handlebars. Does not fit ergonomic-style road bars with extra bends in the drops

• Works with both carbon and aluminum handlebars

• Minimum internal bar diameter is 17.5mm

• Known incompatible handlebars: Syntace Vector, Diety Skywire, Deity Speedway, Jones H-Bar Loop SG 2.5, Chromag BZA, Chromag Cutlass, BMC RCB01, S-Works Hover Carbon, ENVE, Syncros Carbon, Ibis Carbon,  E*Thirteen Base


Recommendations



IMPORTANT!  Do not force the sleeves in the handlebars. They should slide in with one finger. If the sleeve binds at all during installation - trim or double check to make sure the tool is oriented correctly.

Related Products

• EnCase System Hex Bit Wrench Multi-Tool
• EnCase System Chain + Tire Plug Multi-Tool
• EnCase System Storage Sleeves
• EnCase System Extras
• EnCase System Replacement Parts

Tech Specs

Weight:

• Bar Kit One: 132g
• Hex Bit Wrench Multi-tool: 98mm long 15mm diameter 50g
• Chain + Tire Plug Multi-tool: 102mm long, 15mm diameter 46g
• Storage Sleeves: 36g

Material:

• Hex Bit Wrench Multi-Tool: 7075-T6 aluminum, CrV steel
• Chain + Tire Plug Multi-Tool: 7075-T6 aluminum, CrMo steel, butyl strips
• Storage Sleeves: EPDM rubber, 6061-T6 aluminum

Max Torque:

• Max torque for 8 mm hex bit – 40 Nm
• Max torque for 4, 5, 6 mm hex bits & T25, T30 bits -- 20 Nm
• Max torque for all other bits – 10 Nm

Made in the USA

Patents Pending

Patent and trademark information
