Ripsaw Aluminum Pedals
PDL-RS-PRP
Pairs well with
Ripsaw Aluminum Pedals
Ripsaw Aluminum Pedals

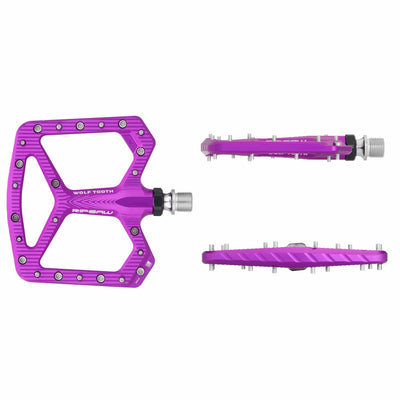

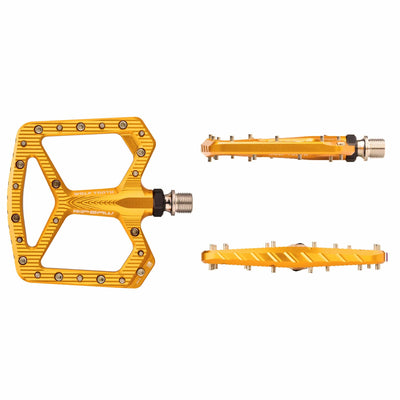

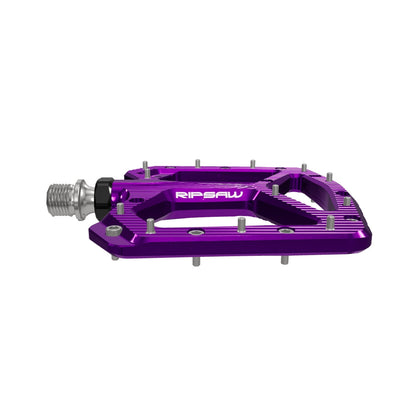

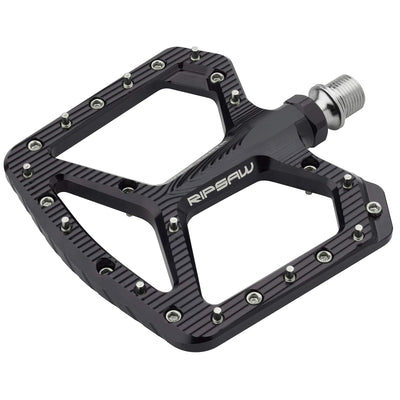

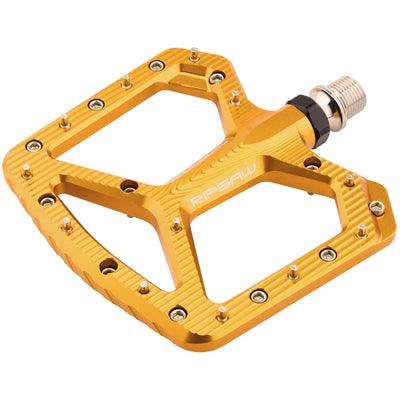

Wolf Tooth Ripsaw Aluminum Pedals feature a slim, lightweight design with a slight convex profile. The large, asymmetric machined aluminum platform provides strong foot support for all-mountain riding, while the thin convex profile is just 7mm thick at the leading edge. Inside the pedal are three fully sealed cartridge bearings, a stainless steel axle, a igus bushing, and a custom radial seal to protect internal components against trail debris.
Slim Convex Profile

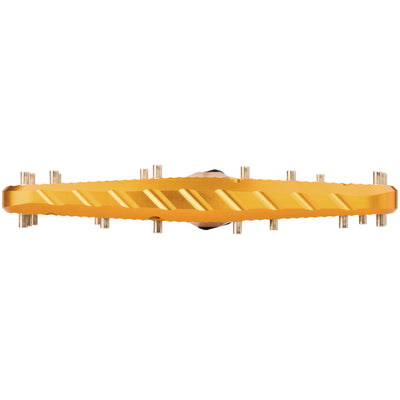

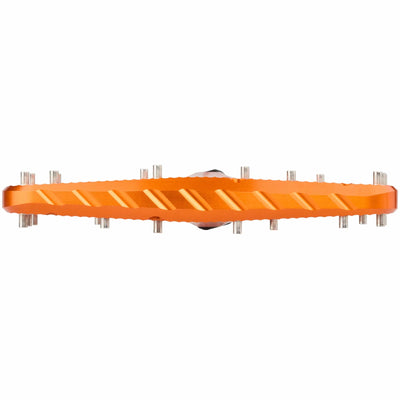

Ripsaw pedals are 12.5mm thick in the center and just 7mm thick in the front and rear edges. This profile is supportive and comfortable for all riders, while performing exceptionally well for riders who prefer pedaling with a mid-foot position or for shoes that do not have much structure or support.
Extra grip
Each side of the pedal has 12 stainless steel rear-loading 4.5mm pins for loads of traction. An additional six 4.5mm pins ship with the pedal. Shorter 3mm pins are available as replacement parts to customize the convexity of the pedal; by installing shorter pins on the edges, the convex profile is emphasized.
Formed with Purpose
The slight convex profile of the pedal body is tallest at the pedal spindle. The shape then tapers toward each edge from there. This profile aligns perfectly with the arch of your foot and provides a strong platform for power transfer.
Reliable Performance
Three low-friction, fully sealed cartridge bearings and one igus bushing with a custom radial seal protect internal components against trail debris for riding in all conditions.
Precision Machining
Each Ripsaw Aluminum Pedal body begins as a billet of raw aluminum. After 37 minutes in our CNC mills, the result is a beautifully crafted pedal body that is ready for anodizing and assembly. If you’re a nerd for machining, you’ll appreciate the intricate gradients and machine paths.
Five Colors

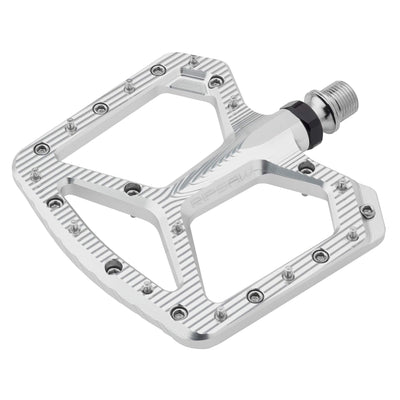

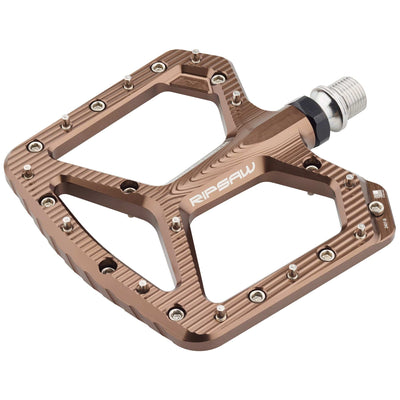

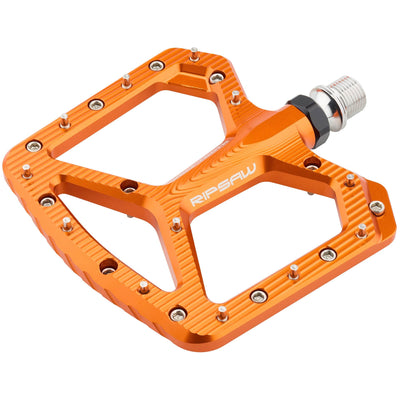

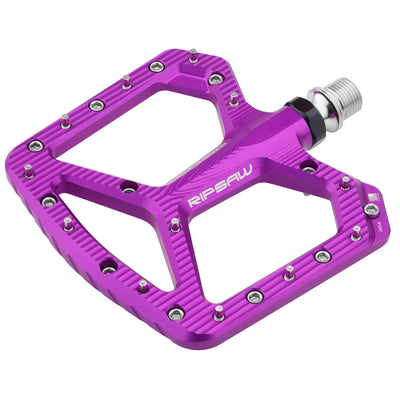

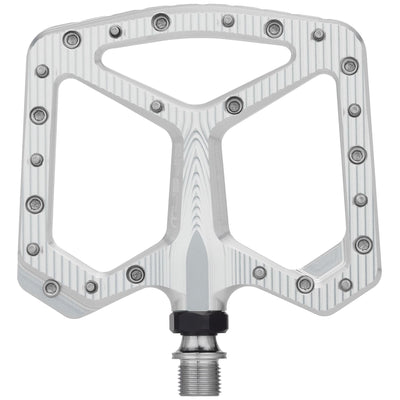

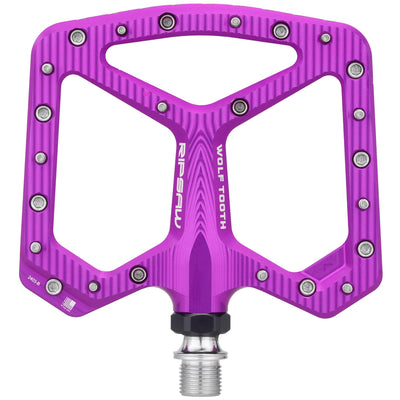

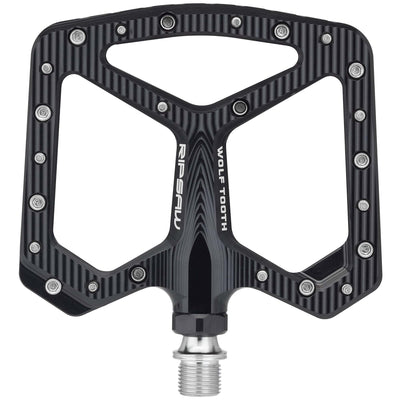

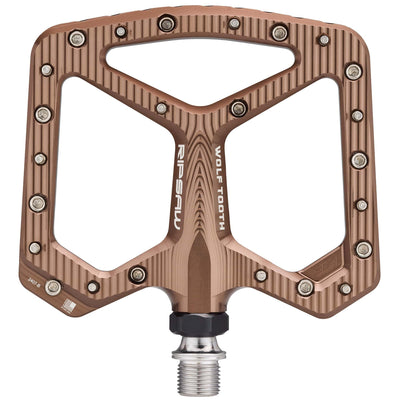

Black, Raw Silver, Ultraviolet Purple, Orange, and Espresso
Dimensions

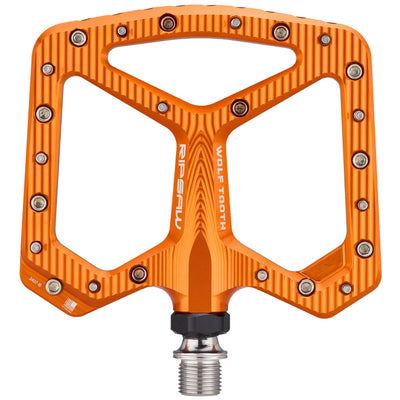

118mm long x 102mm wide
Large platform size provides strong foot support.

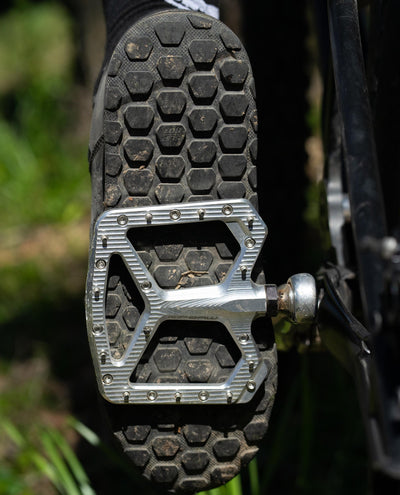

Convex arch aligns with the arch of your foot.
Machined and Assembled in USA
Ripsaw Aluminum Pedals are CNC machined here in our Minnesota machine shop.
Exceeds all EN/ISO Standards
Safety is our priority. Ripsaw Aluminum Pedals have undergone strenuous static and fatigue stress tests that exceed EN/ISO safety standards.
Five-Year Warranty
Wolf Tooth Ripsaw Aluminum Pedals are warrantied for defects in material or workmanship for a period of five years from the date of purchase.
We believe in your right to be able to fix your components. Crashes happen, parts get misplaced, things go bump in the night. All individual parts are available as replacement parts.
100% USER SERVICEABLE
Service for Waveform Aluminum Pedals is simple and can be done at home.
REPLACEMENT PARTS AVAILABLE
Each of the components of Waveform Aluminum Pedals can be purchased separately, from the body to the bearings.
TUTORIAL VIDEOS
A video guide for service is available so you can disassemble, service, and reassemble Waveform Aluminum Pedals.
The new Ripsaw Aluminum Pedals feature a slim, lightweight design with a slight convex profile. The large, asymmetric aluminum platform provides strong foot support for all-mountain riding, while the minimal convex profile is just 7mm thick at the leading edge. These are designed for cyclists who prefer a mid-foot riding position, where the ball of the foot is in front of the pedal spindle and the arch of the foot aligns with the convex arch in the center of the pedal. Inside Ripsaw Aluminum Pedals is a 17-4 stainless steel axle, three sealed cartridge bearings, and one igus bushing with a custom radial seal to protect internal components from trail debris and dirt.
- One size: 118mm long x 102mm wide
- Twelve stainless steel, rear-loading grip pins on each side
- Six extra 4.5mm grip pins included
- Five colors: Black, Espresso, Orange, Raw Silver, Ultraviolet Purple
- Replacement parts and service guides available via Wolf Tooth Right to Repair
- Five-year warranty
- Exceeds all ISO safety standards
- Machined and assembled at Wolf Tooth in Minnesota, USA
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
- Pins can be removed for desired grip by using a 3mm hex tool.
- Includes 6 extra grip pins. More pins are available on the replacement parts page. See installation instructions for recommendations on installing pins.
Compatibility
- Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Related Products
Ripsaw Pedals Replacement Parts
Tech Specs
Ripsaw Pedal Replacement Parts
Weight: 380g
Pin Height: 4.5mm
Material: Pedal Body: 6061-T6 Aluminum; Axle: 17-4 PH Stainless Steel; Pins: 304 Stainless Steel
Made in the USA
