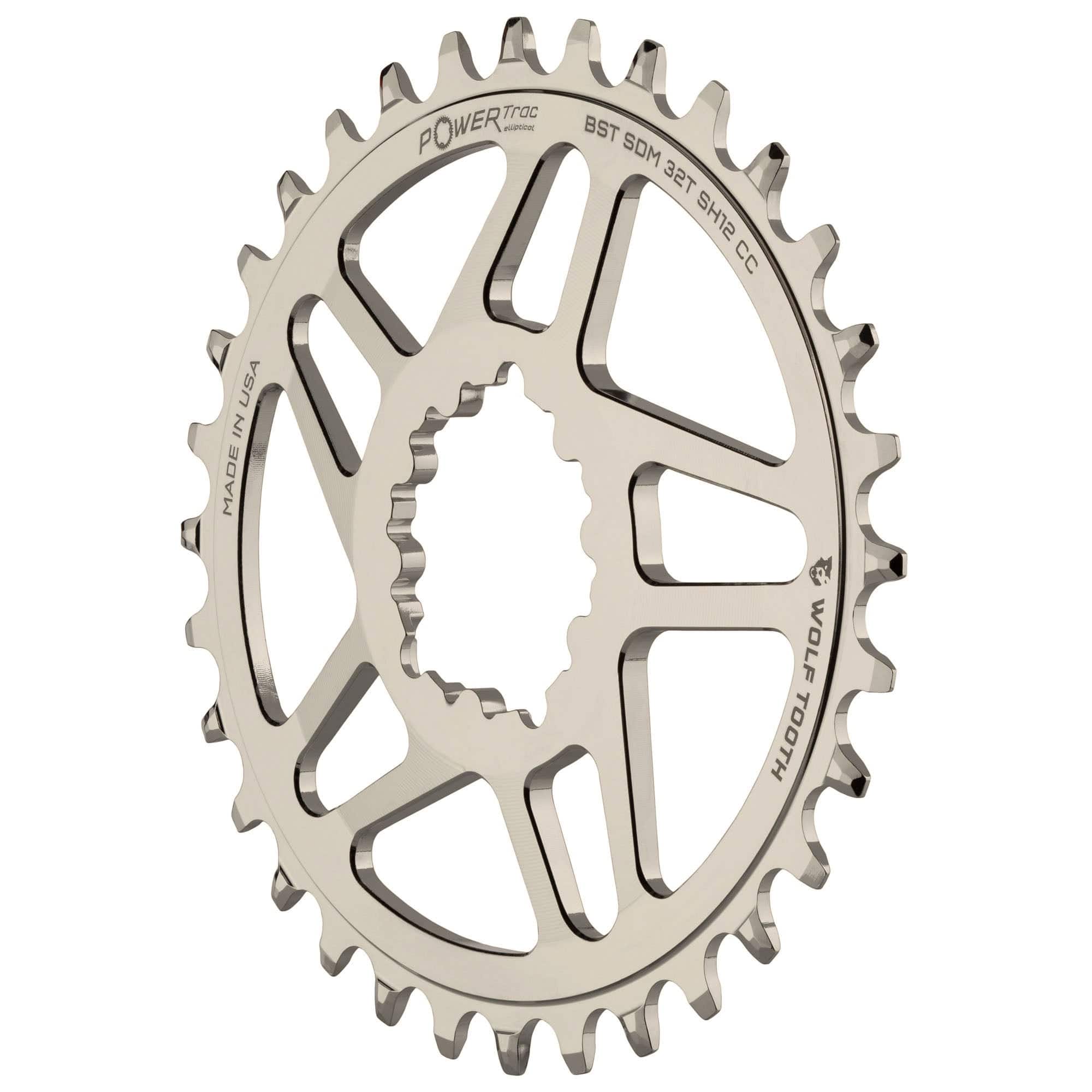

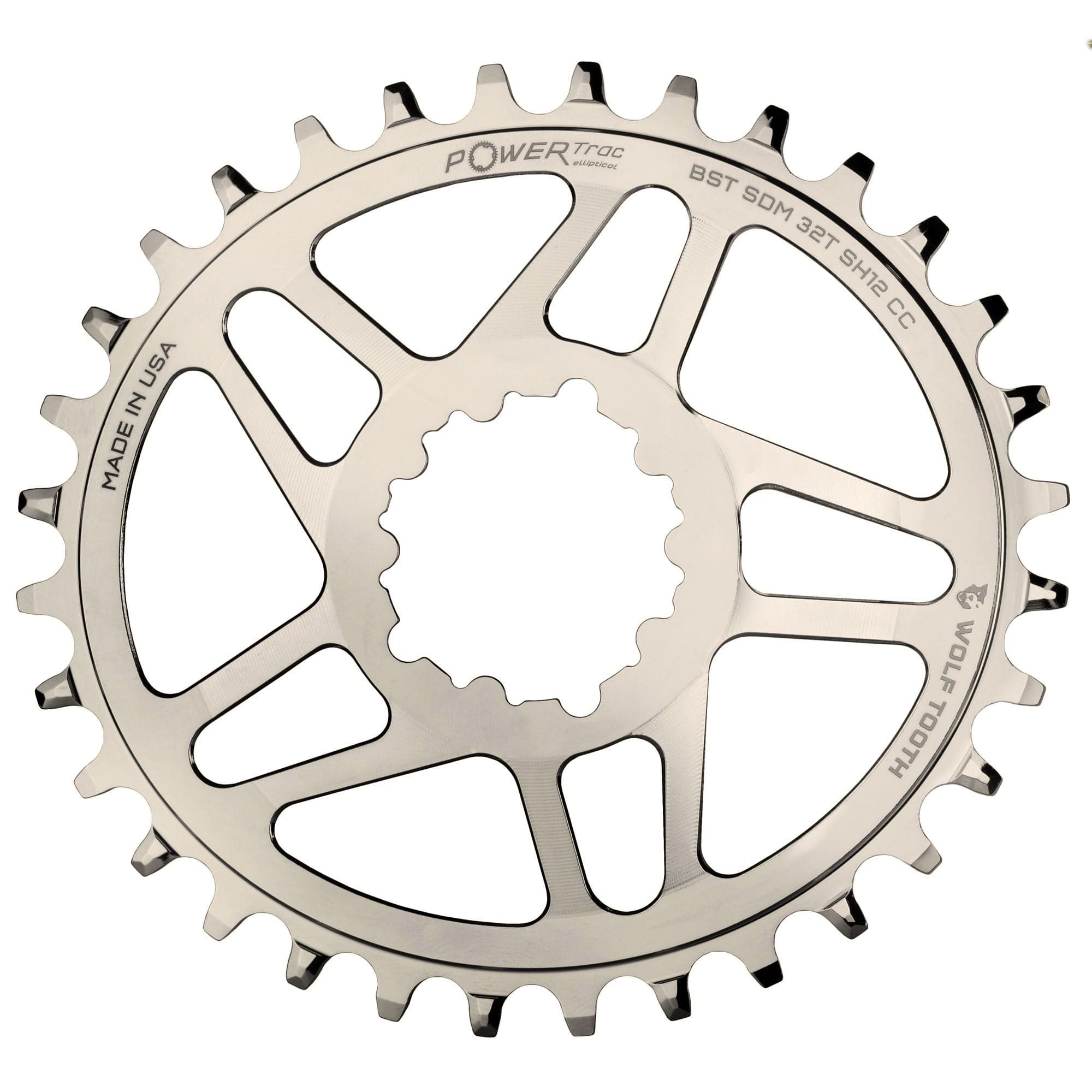

Oval Direct Mount Chainrings for Cane Creek and SRAM Cranks for Shimano 12spd Hyperglide+ Chain
OVAL-SDM32-BST-NI-SH12
Pairs well with
Estimated back in stock date: Dec 31, 2024
Free WT-1 With Chainring Purchase
Add any chainring and a .5 fl oz bottle of WT-1 to your cart, then enter code 'WT1LastsLonger' at checkout to get your free WT-1 Chain Lube.
Promotion Expires 12-31-2024
More power, better traction, less shifting. Wolf Tooth oval chainrings use our proprietary PowerTrac design that has all the benefits of oval, but without the funky, uneven pedal stroke. Ride one once and you’ll wonder why you waited so long to try oval.
Think of an oval chainring as two chainrings in one. A major benefit of oval is how the shape of the chainring alters your gearing in two important phases of your pedal stroke by harnessing your body’s natural biomechanics. Here’s how it works. The area of the chainring with the larger diameter engages with the chain at the optimal point on the downstroke, which is what’s known as the Power Zone. If you were to look at a clock, the Power Zone would be between 1-5 and 7-11. Conversely, the Recovery Zone – back to the clock face, between 11-1 and 5-7 – is the weakest part of the pedal stroke, when the oval maximizes your efficiency. A 34T oval chainring behaves like a 36T chainring when you want power, while behaving like a 32T chainring when you’re climbing.
We’ve also engineered our oval chainrings to provide smoother, more efficient pedal rotation. This equates to better traction because of steadier torque on the rear wheel. With a Wolf Tooth oval chainring, you can harness more of your strength in the Power Zone, while having easier pedaling in the Recovery Zone.

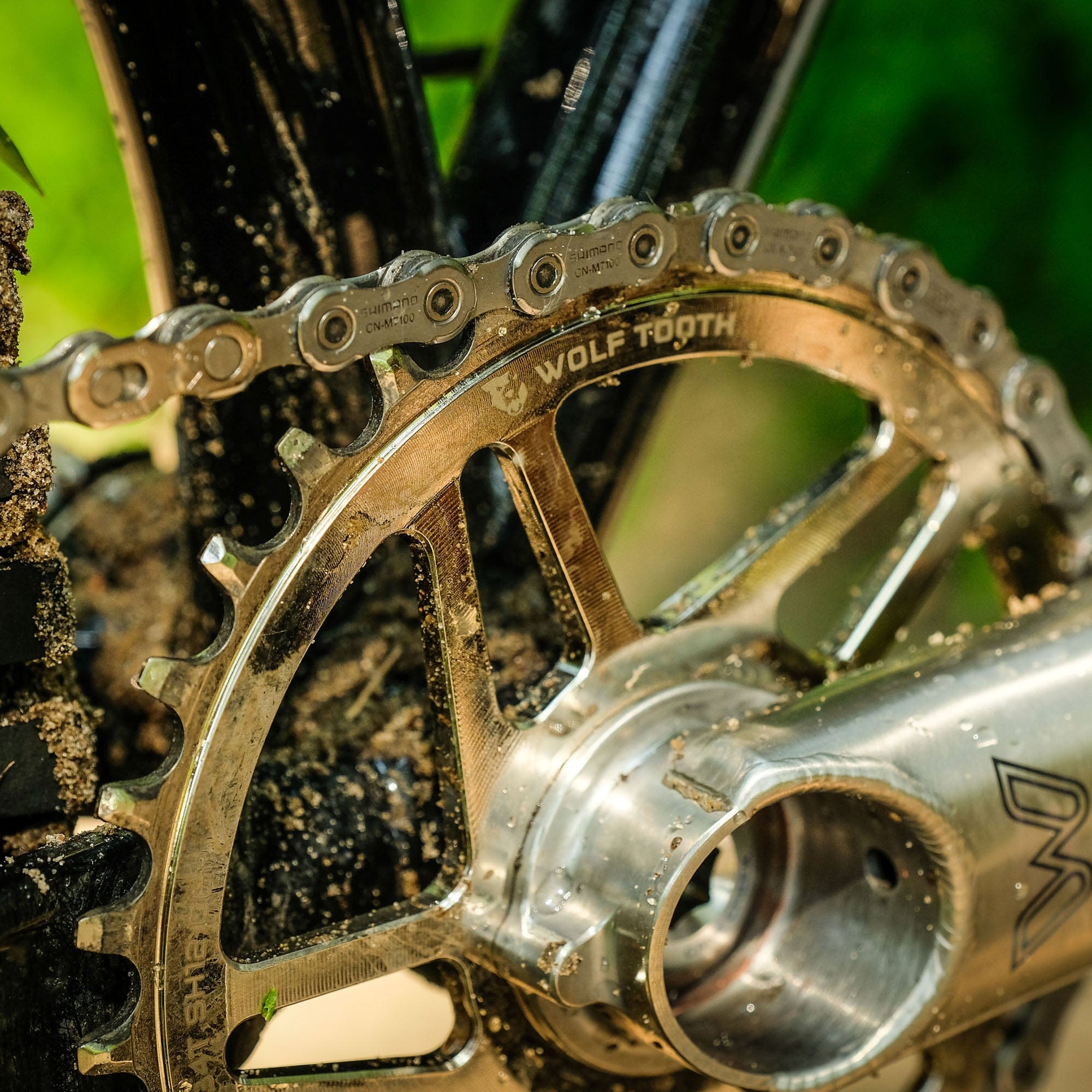

These nickel plated chainrings were designed to look great on the Cane Creek eeWing titanium cranksets. They also work great on SRAM direct mount cranksets.
The Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
-
The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
-
Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
-
Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Cane Creek eeWing cranksets
- SRAM direct mount cranksets with 3 bolt interface
- Compatible with Shimano 12-speed Hyperglide+ chains on bikes with boost and non-boost spacing
Related Products
Shimano Hyperglide+ 12spd compatible chainrings
Tech Specs
Weight: 32t • 74g
Material: Nickel-plated 7075-T6 aluminum
Made in the USA
Patent and trademark information
Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.
| Tooth Profile | |||
|---|---|---|---|
Tooth Profile |
Drop-Stop® B |
Drop-Stop® A |
Drop-Stop® ST |
| Chain Compatibility | |||
Chain Compatibility |
All 9s, 10s, and 11s Chains 12s Chains:
Not compatible with 12s Shimano HG+, 12s KMC, or 13s Campagnolo chains |
All 9s, 10s, and 11s Chains 12s Chains:
You can use Drop-Stop B when Drop-Stop A is not available* Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains |
12s Chains:
Not compatible with all other chains |
| Details | |||
Details |
 Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment. Drop-Stop B Chainrings |
 The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment. Drop-Stop A Chainrings |
 Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B. Drop-Stop ST Chainrings |
*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with SRAM Road and Transmission (T-type) Flattop chains.
