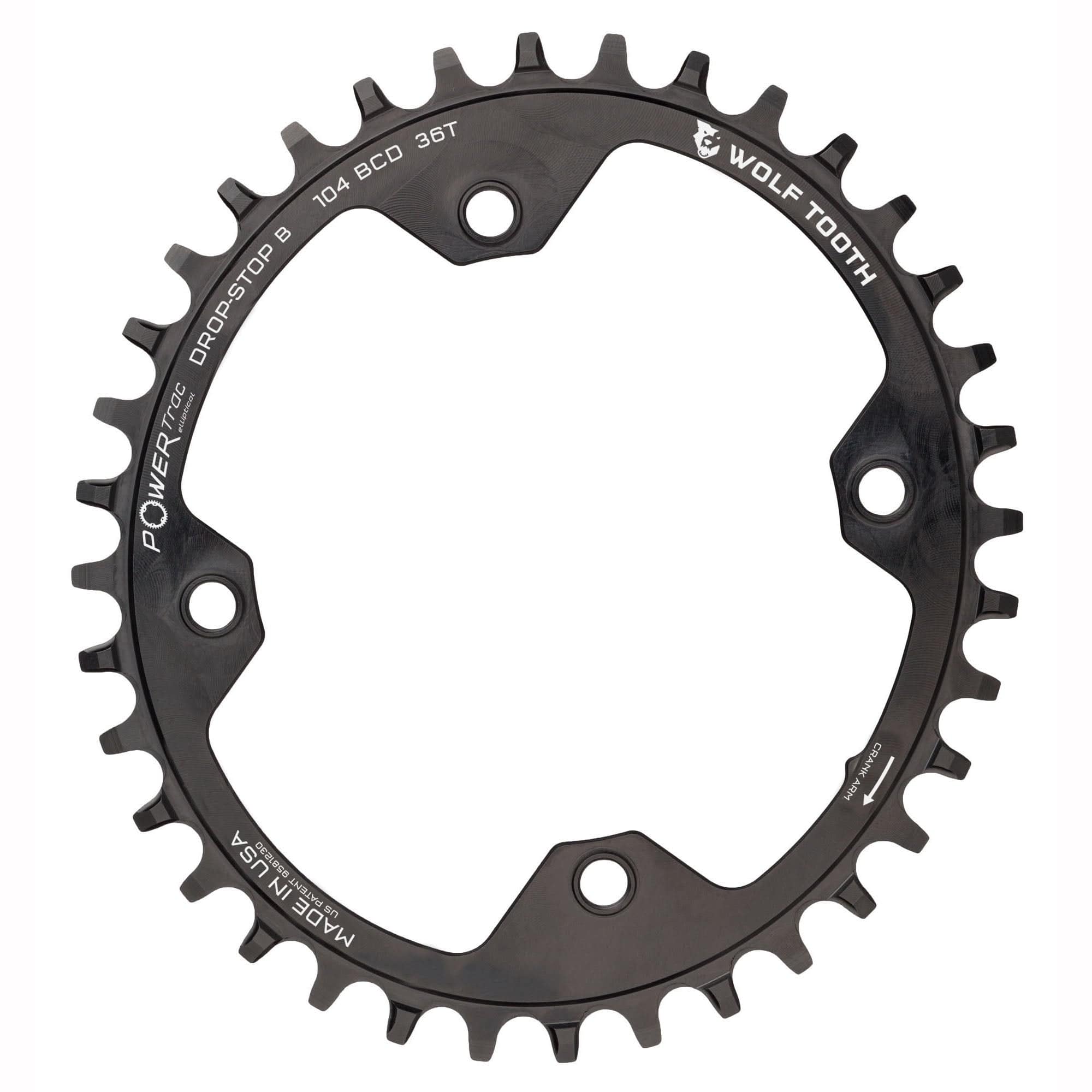

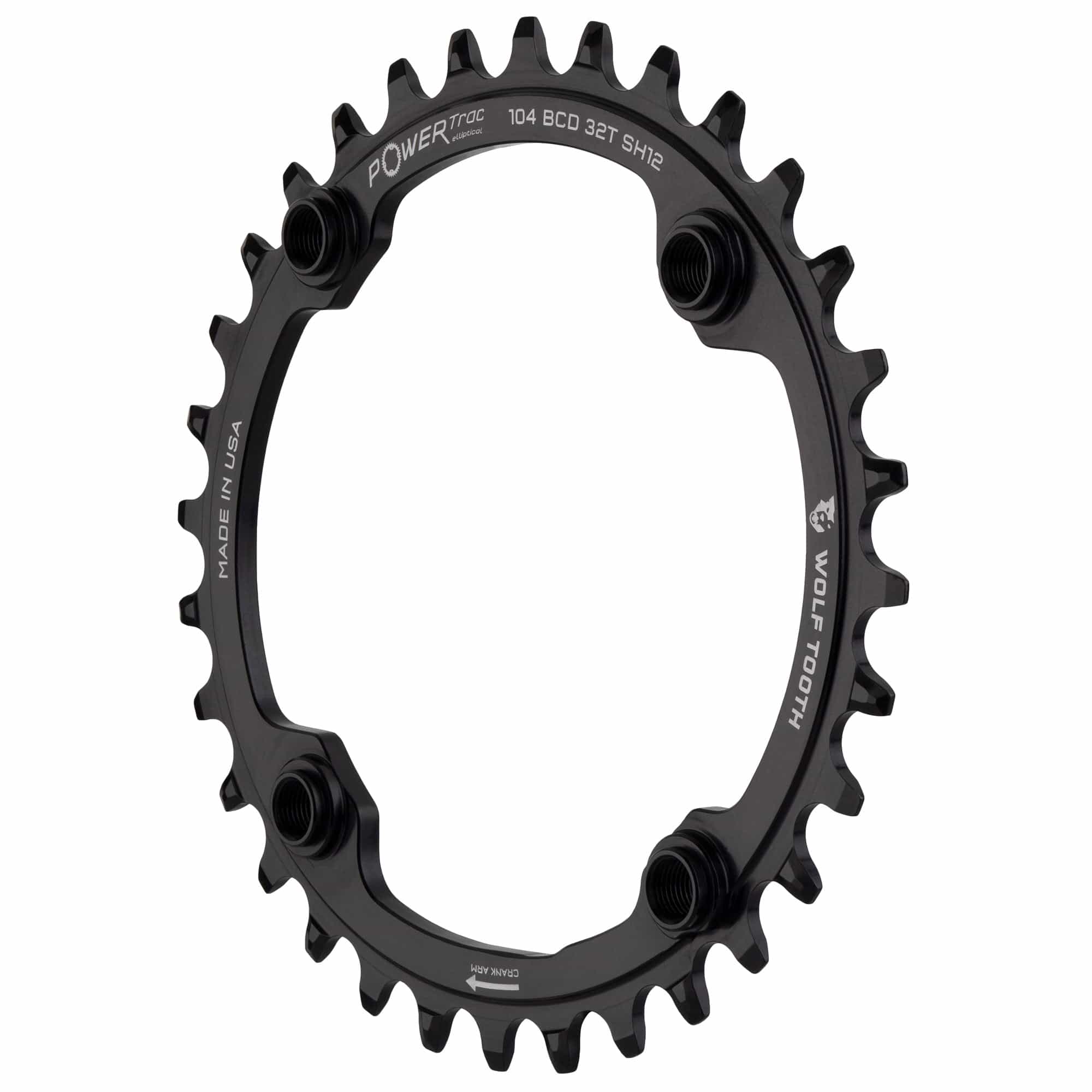

Oval 104 BCD Chainrings
OVAL-10432-SH12
Pairs well with
Oval 104 BCD Chainrings
Free WT-1 With Chainring Purchase
Add any chainring and a .5 fl oz bottle of WT-1 to your cart, then enter code 'WT1LastsLonger' at checkout to get your free WT-1 Chain Lube.
Promotion Expires 12-31-2024
More power, better traction, less shifting. Wolf Tooth oval chainrings use our proprietary PowerTrac design that has all the benefits of oval, but without the funky, uneven pedal stroke. Ride one once and you’ll wonder why you waited so long to try oval.
Think of an oval chainring as two chainrings in one. A major benefit of oval is how the shape of the chainring alters your gearing in two important phases of your pedal stroke by harnessing your body’s natural biomechanics. Here’s how it works. The area of the chainring with the larger diameter engages with the chain at the optimal point on the downstroke, which is what’s known as the Power Zone. If you were to look at a clock, the Power Zone would be between 1-5 and 7-11. Conversely, the Recovery Zone – back to the clock face, between 11-1 and 5-7 – is the weakest part of the pedal stroke, when the oval maximizes your efficiency. A 34T oval chainring behaves like a 36T chainring when you want power, while behaving like a 32T chainring when you’re climbing.
We’ve also engineered our oval chainrings to provide smoother, more efficient pedal rotation. This equates to better traction because of steadier torque on the rear wheel. With a Wolf Tooth oval chainring, you can harness more of your strength in the Power Zone, while having easier pedaling in the Recovery Zone.
Chainline (approximate as BB centering and cranksets vary) - 48mm on 3x cranksets and 49mm on 2x
Compatibility
- These rings fit any 104 BCD crankset
- Designed to meet the requirements for E-bike use
- Chainring bolts:
- 104 x 32T - use 10mm bolts
- 104 x 34T, 36T use 6mm bolts, unless using a Bash ring
- Wolf Tooth’s patented wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention)
- Quarq power meter compatible with sizes 34t and 36t. Filing is required for 32t fitment onto some older Quarq Power meters. No modifications are required for the DUB Quarq Power meter.
- Threaded to use M8 chainring bolts (no nuts required)
- Ovality of 10% and timing of 112° after TDC (top dead center)
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance.)
Recommendations
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
- Recommend the use of a clutch style rear derailleur for the best chain security.
Related Products
- If you need a ring smaller than 32t (smallest that fits on a 104 BCD), checkout out our 64 BCD oval chainrings that will mount to your "small ring" position.
- 10mm bolts
- 104 BCD bashrings
Tech Specs
Weight: 32T • 41g | 34T • 48g | 36T • 55g (check elliptical 64 BCD rings for smaller sizes)
Material: 7075-T6 aluminum
Made in the USA
Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.
| Tooth Profile | |||
|---|---|---|---|
Tooth Profile |
Drop-Stop® B |
Drop-Stop® A |
Drop-Stop® ST |
| Chain Compatibility | |||
Chain Compatibility |
All 9s, 10s, and 11s Chains 12s Chains:
Not compatible with 12s Shimano HG+, 12s KMC, or 13s Campagnolo chains |
All 9s, 10s, and 11s Chains 12s Chains:
You can use Drop-Stop B when Drop-Stop A is not available* Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains |
12s Chains:
Not compatible with all other chains |
| Details | |||
Details |
 Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment. Drop-Stop B Chainrings |
 The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment. Drop-Stop A Chainrings |
 Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B. Drop-Stop ST Chainrings |
*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with SRAM Road and Transmission (T-type) Flattop chains.
