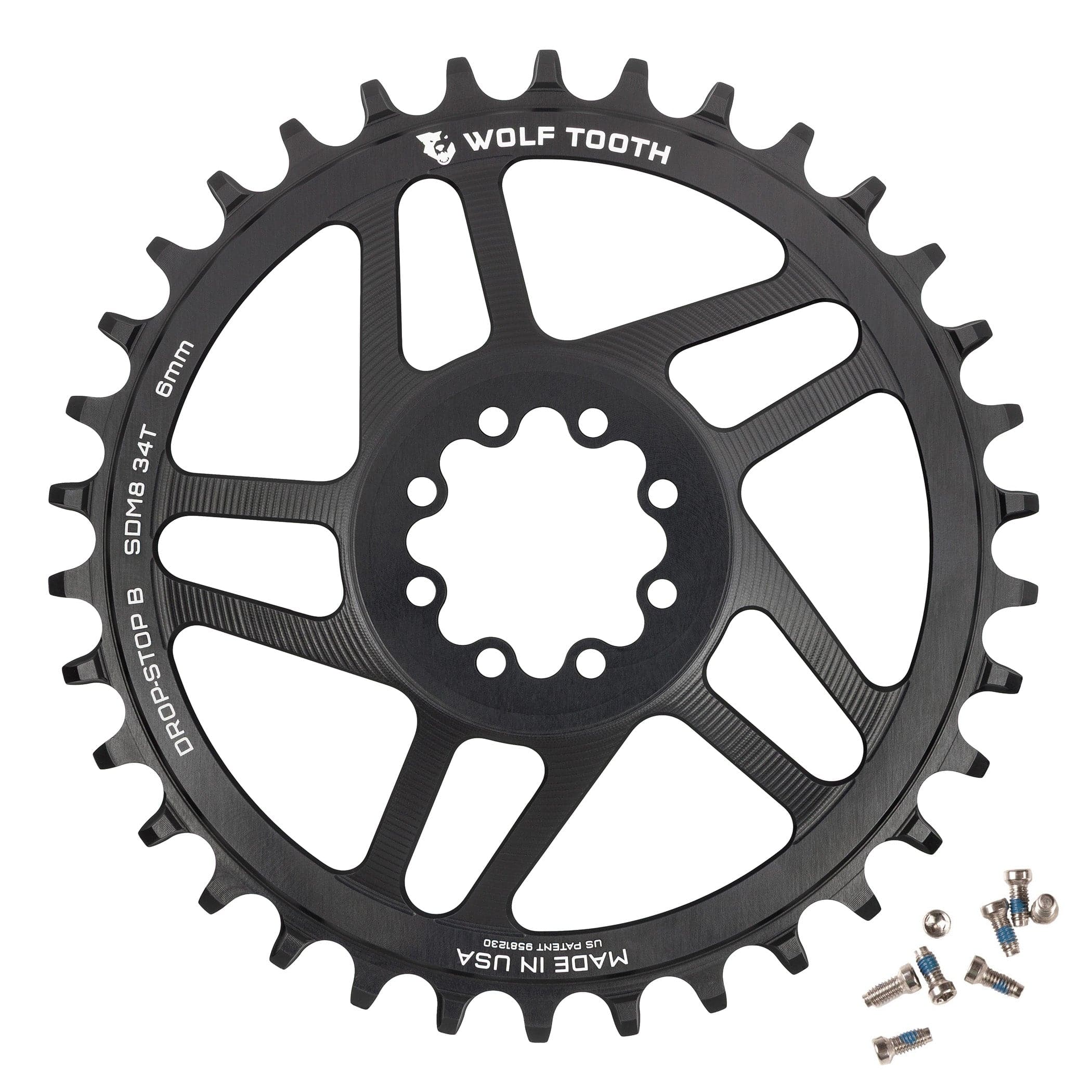

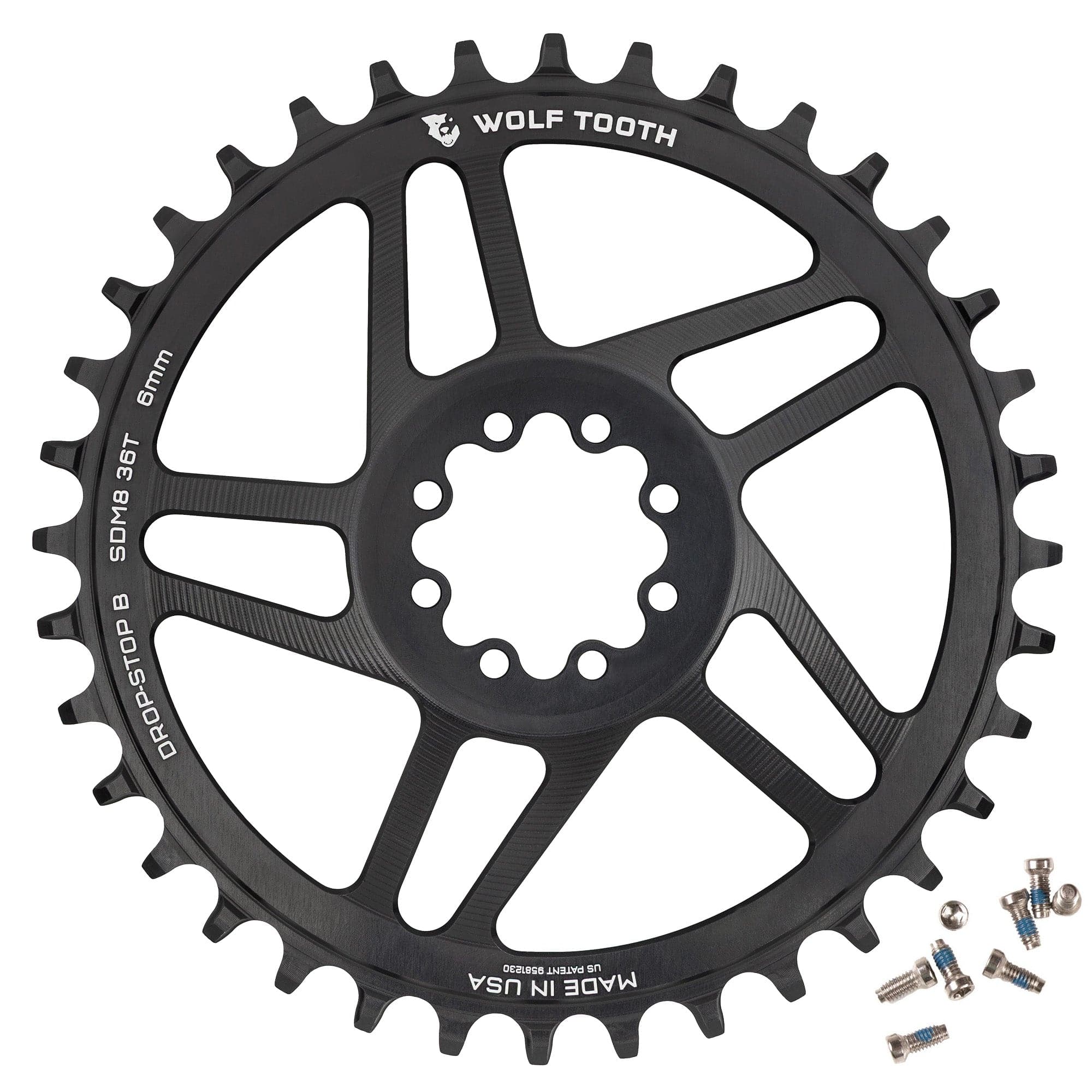

Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks
SDM8-R-B-03P-28
Pairs well with
Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks
Free WT-1 With Chainring Purchase
Add any chainring and a .5 fl oz bottle of WT-1 to your cart, then enter code 'WT1LastsLonger' at checkout to get your free WT-1 Chain Lube.
Promotion Expires 12-31-2024
Our new Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the latest SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.
The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets. The 0mm offset is for SRAM XX1 SL cranks with DUB spindles to move the chainline from 52mm to 55mm.
Compatibility
- These direct mount chainrings will replace your existing chainring and spider or replace a direct mount chainring for SRAM T-Type Transmission cranksets and other SRAM cranks that use the 8-bolt standard.
- SRAM T-Type Transmission DUB Wide MTB cranksets use the 8-bolt direct mount standard.
- Wolf Tooth’s patented Drop-Stop® B wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability
- 3mm, 0mm offsets available
- Chainline 55mm with 3mm offset for DUB Wide MTB, 0mm offset for DUB
- Chainline 52mm with 3mm offset for DUB
Recommendations
- Recommend the use of a clutch-style rear derailleur for the best chain security
- Use the included custom T20 bolts. Torque 4Nm with T20 tool
Tech Specs
Material: 7075-T6 aluminum
Made in the USA
Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.
| Tooth Profile | |||
|---|---|---|---|
Tooth Profile |
Drop-Stop® B |
Drop-Stop® A |
Drop-Stop® ST |
| Chain Compatibility | |||
Chain Compatibility |
All 9s, 10s, and 11s Chains 12s Chains:
Not compatible with 12s Shimano HG+, 12s KMC, or 13s Campagnolo chains |
All 9s, 10s, and 11s Chains 12s Chains:
You can use Drop-Stop B when Drop-Stop A is not available* Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains |
12s Chains:
Not compatible with all other chains |
| Details | |||
Details |
 Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment. Drop-Stop B Chainrings |
 The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment. Drop-Stop A Chainrings |
 Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B. Drop-Stop ST Chainrings |
*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with SRAM Road and Transmission (T-type) Flattop chains.
