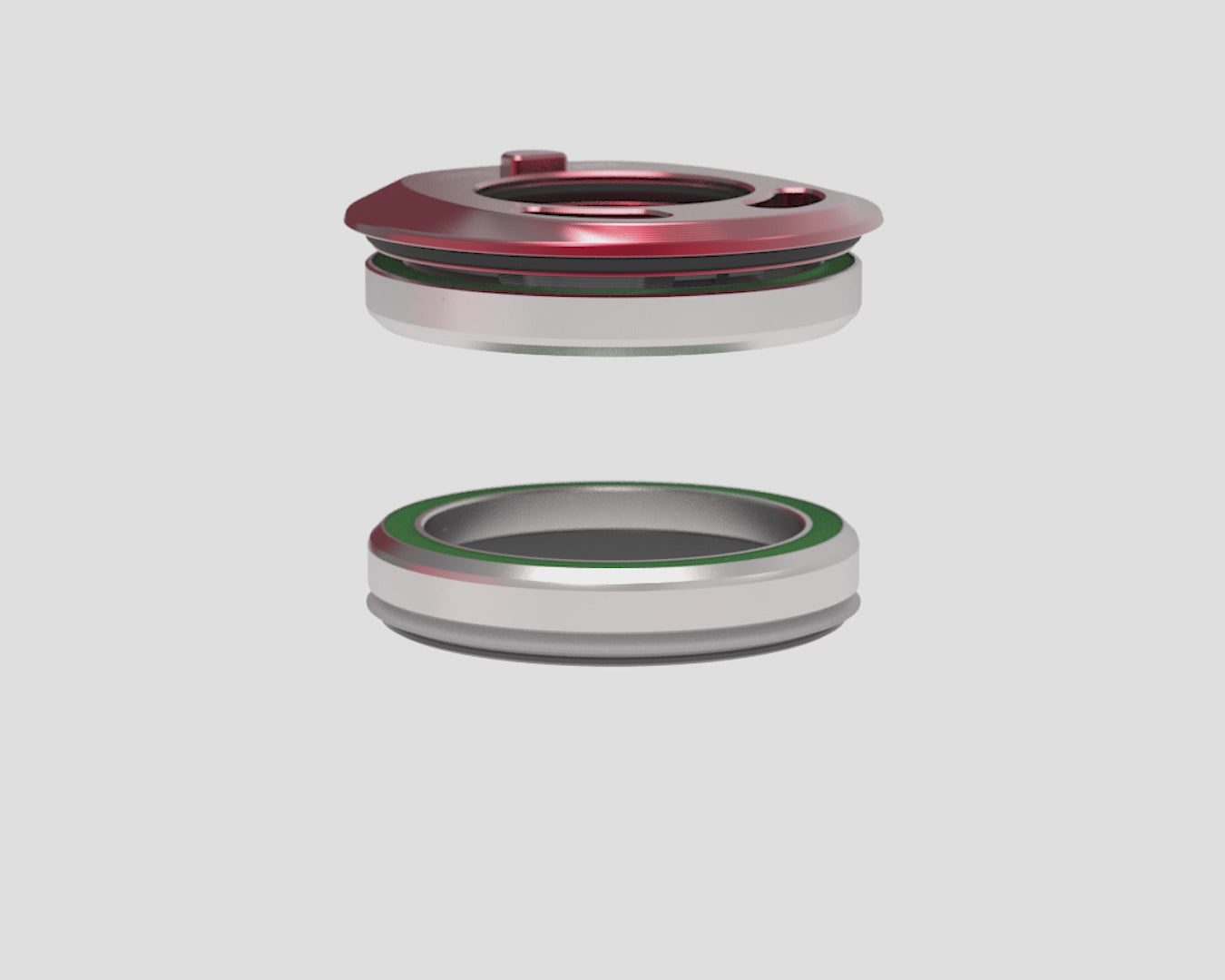

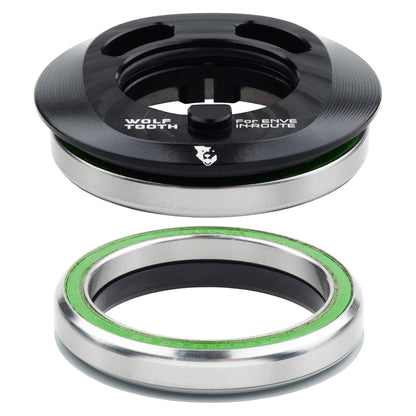

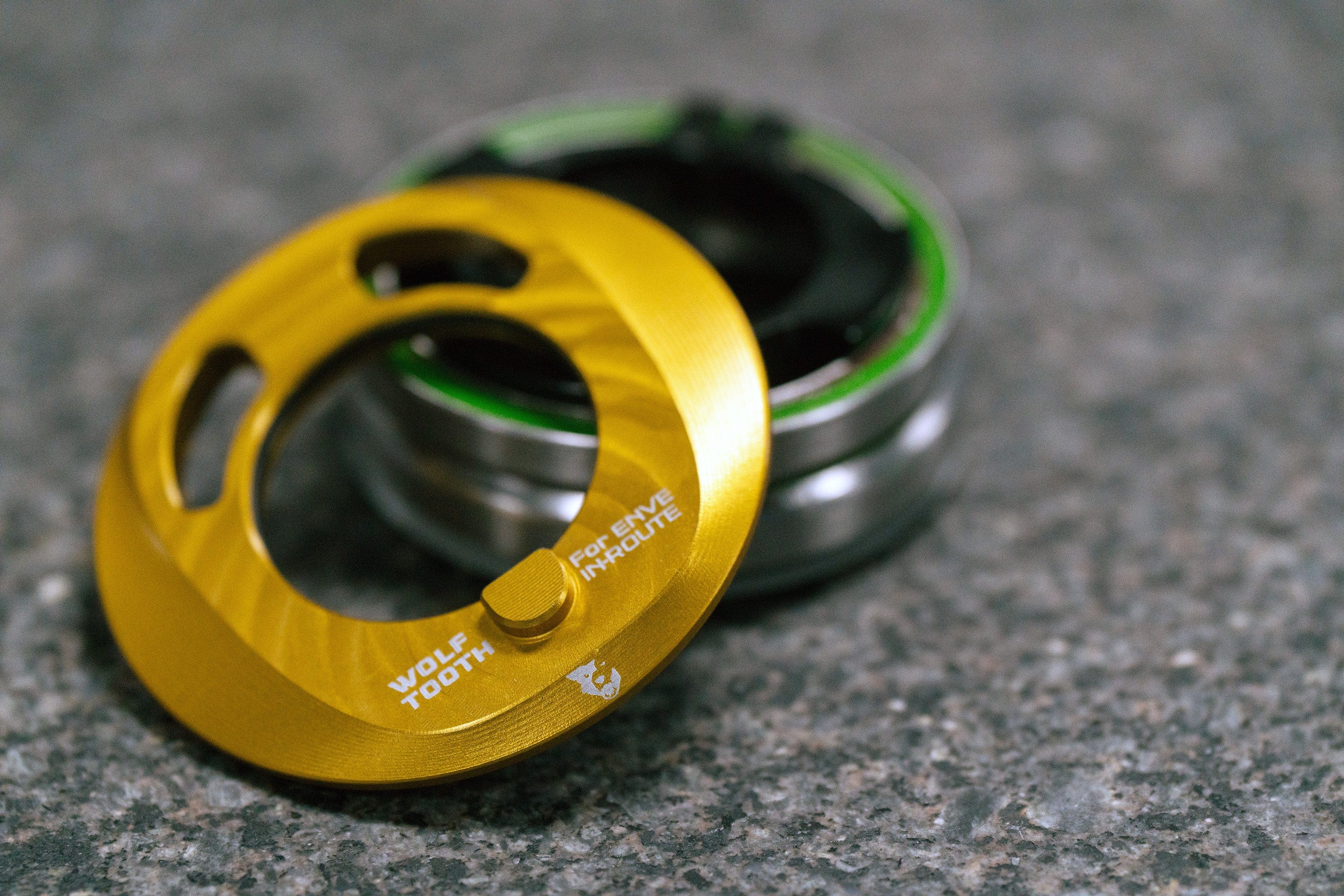

Wolf Tooth Premium IS52 Internal Headset for ENVE IN-Route System
IS52U-L-IR-BLK
Wolf Tooth Premium IS52 Internal Headset for ENVE IN-Route System
Premium Headsets for Enve IN-Route System
Wolf Tooth Premium Internal IS52 Headsets were developed for frames using the ENVE IN-Route System of cable integration with an IS52 headset. It was made for cyclists who want a clean, aero cockpit that keeps cables and brake lines out of sight. Wolf Tooth headsets are machined with aircraft-grade 6061 aluminum at Wolf Tooth in Minnesota, USA.
Full Integration
This Internal headset helps reduce aerodynamic drag by hiding cables away from airflow, and presents a svelte profile with its ultra-low stack height and narrow, machined profile. Extremely lightweight at only 78g, it sets the benchmark in performance for a fully integrated cockpit.
Slammed.

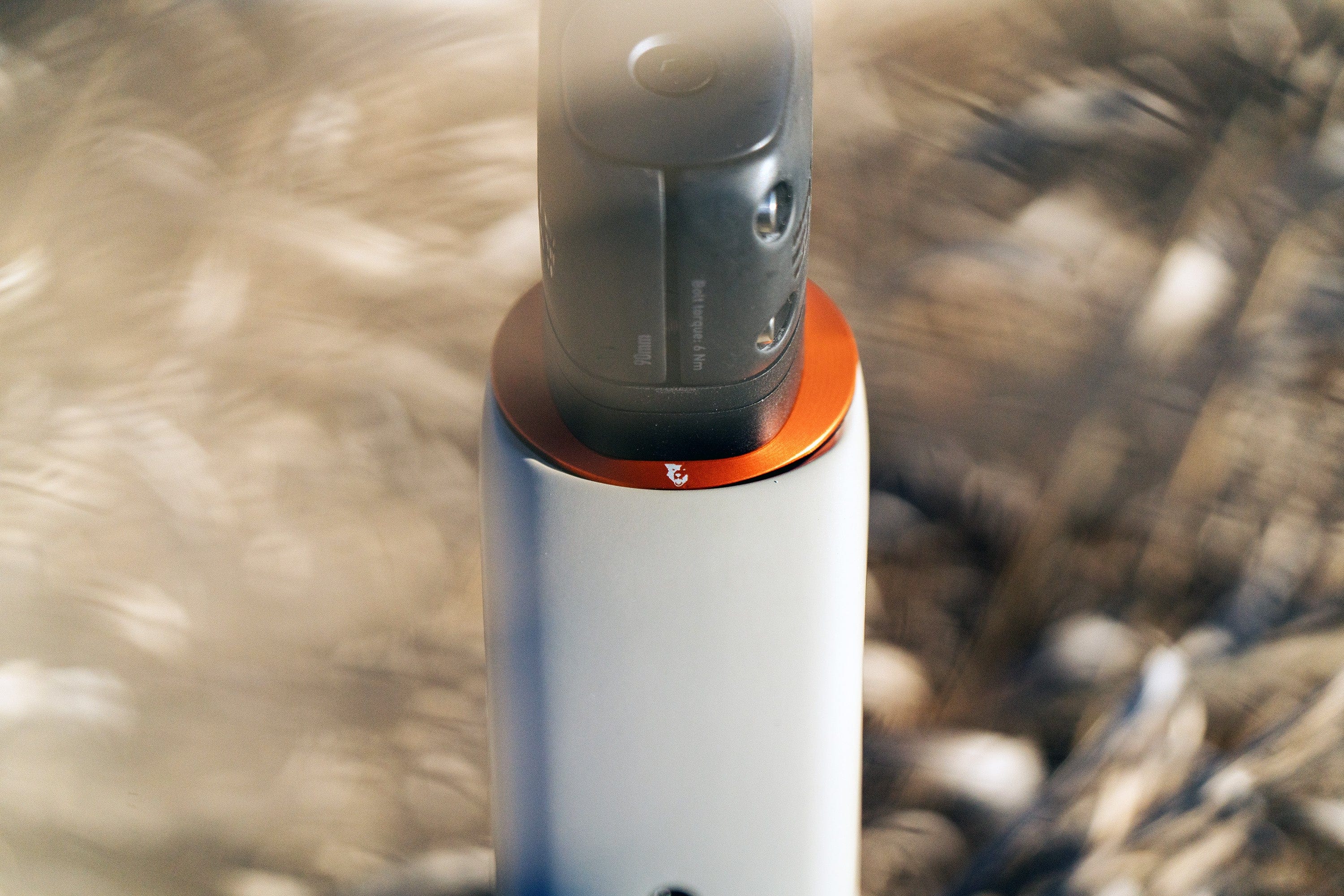

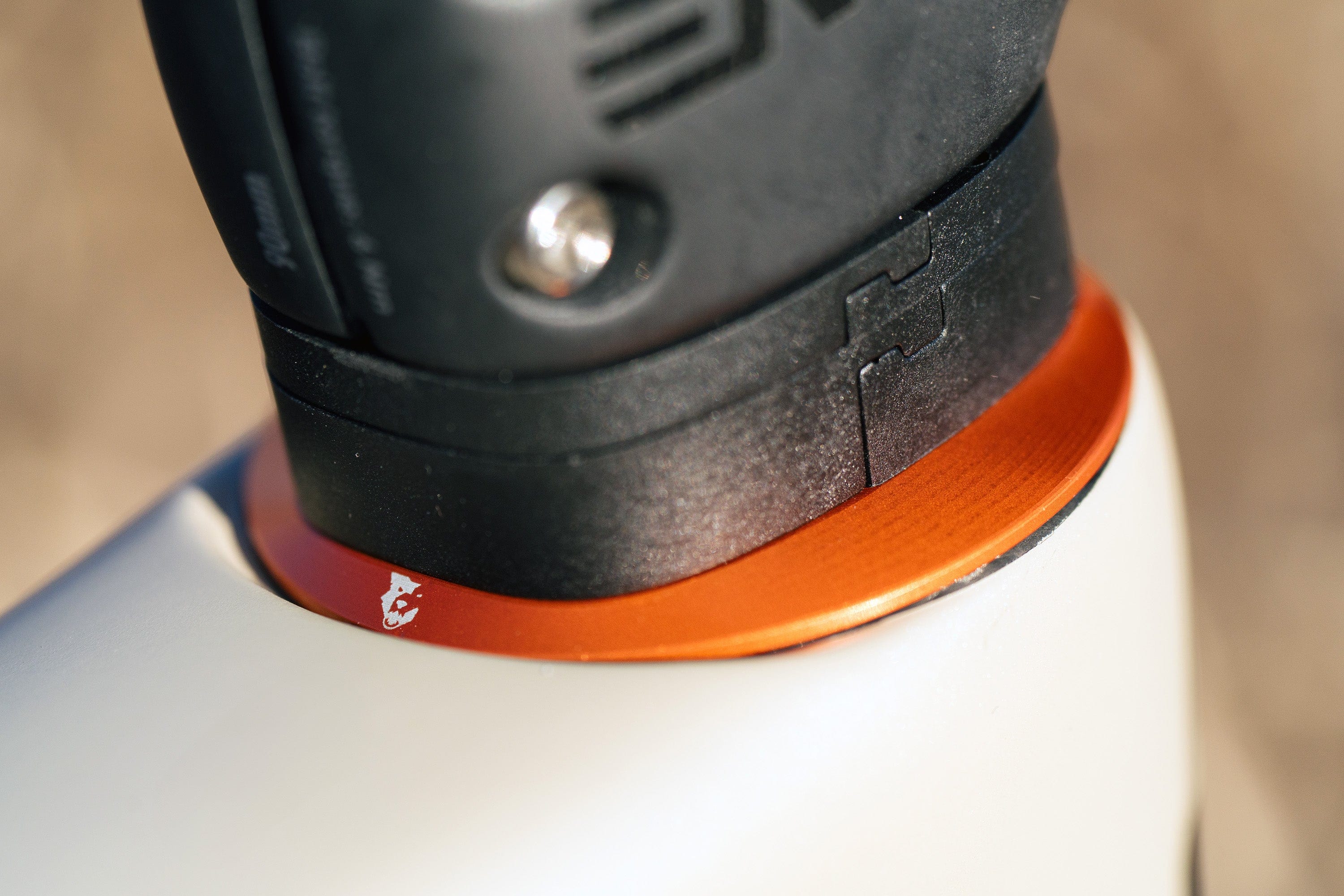

The new Premium Internal Headset features an ultra-low 3.5mm upper stack height for a smooth transition from cockpit to headset to frame.
Triple-Sealed Weatherproofing
Sealing against the elements is critical on fully integrated bikes, where a bearing replacement involves disassembly of the entire cockpit and a brake bleed.
Like all Wolf Tooth headsets, this new option features our best-in-class triple-sealed system to protect bearings from the elements. It also includes Enduro stainless steel bearings that use the largest possible ball size and are filled with high-pressure waterproof lubricant.
Machined In-house in Minnesota, USA
Our new Premium Integrated Headset for Enve IN-Route System is covered by our Right to Repair program that offers replacement parts and installation guides. Wolf Tooth Premium Headsets carry a lifetime warranty.

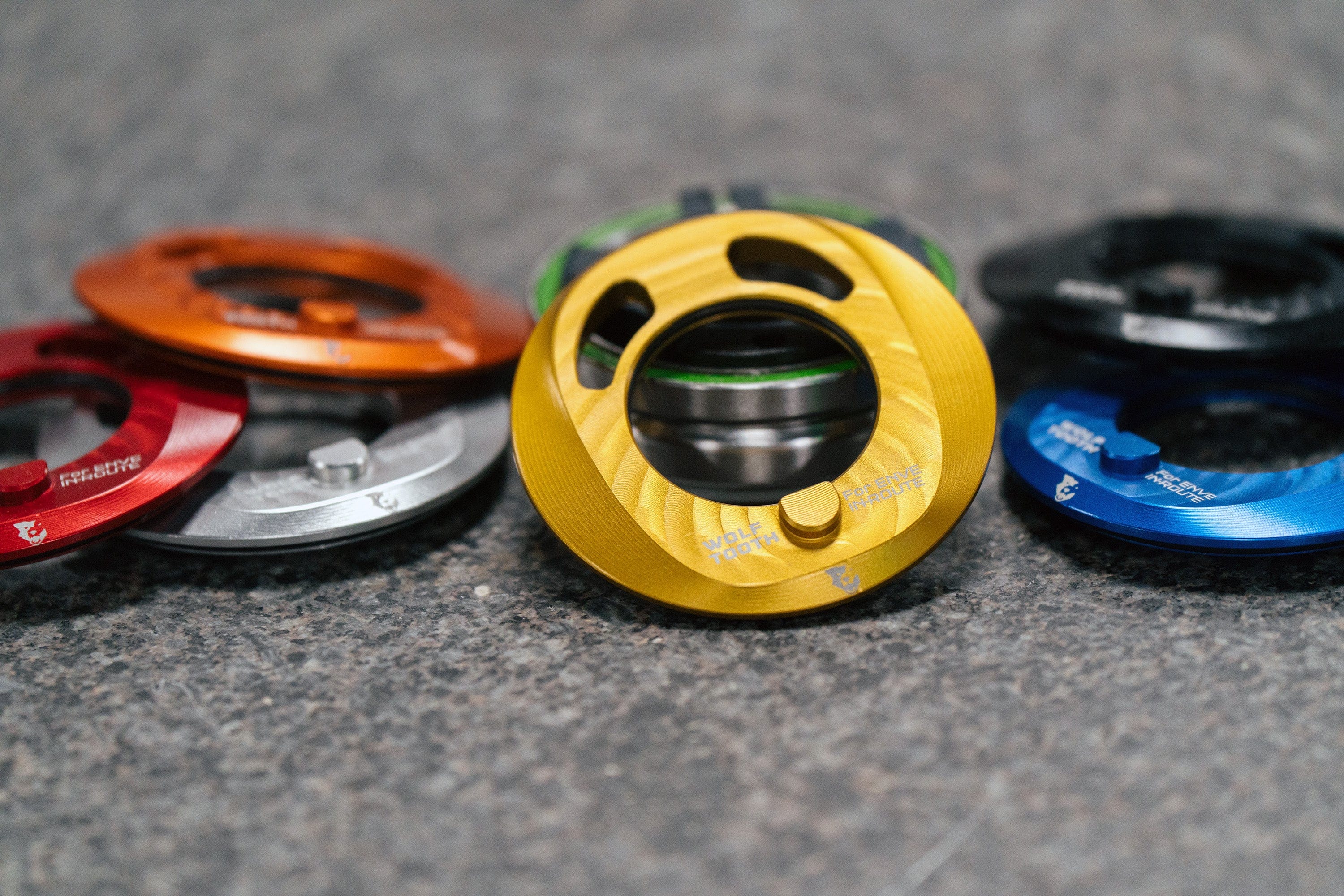

Color Shop

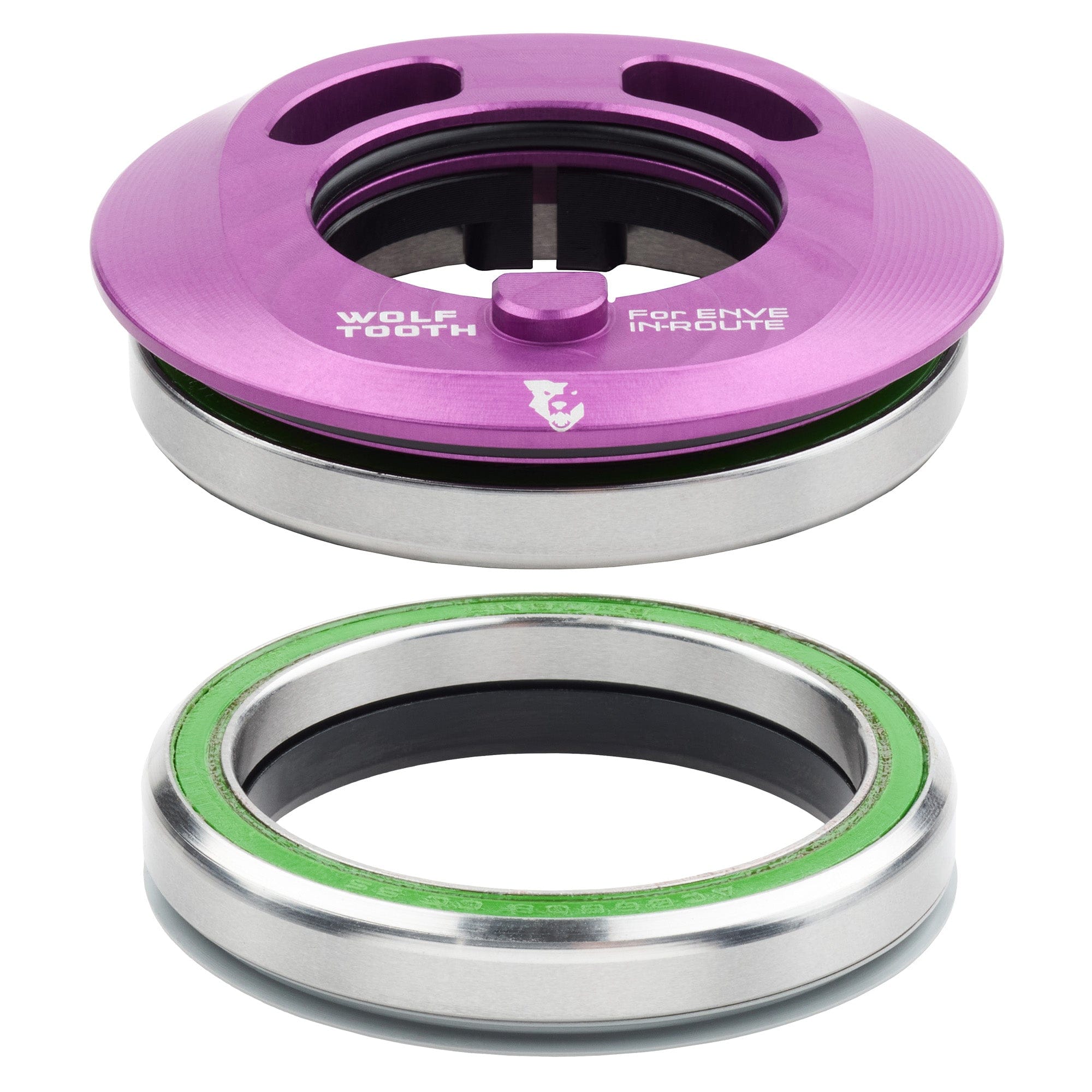

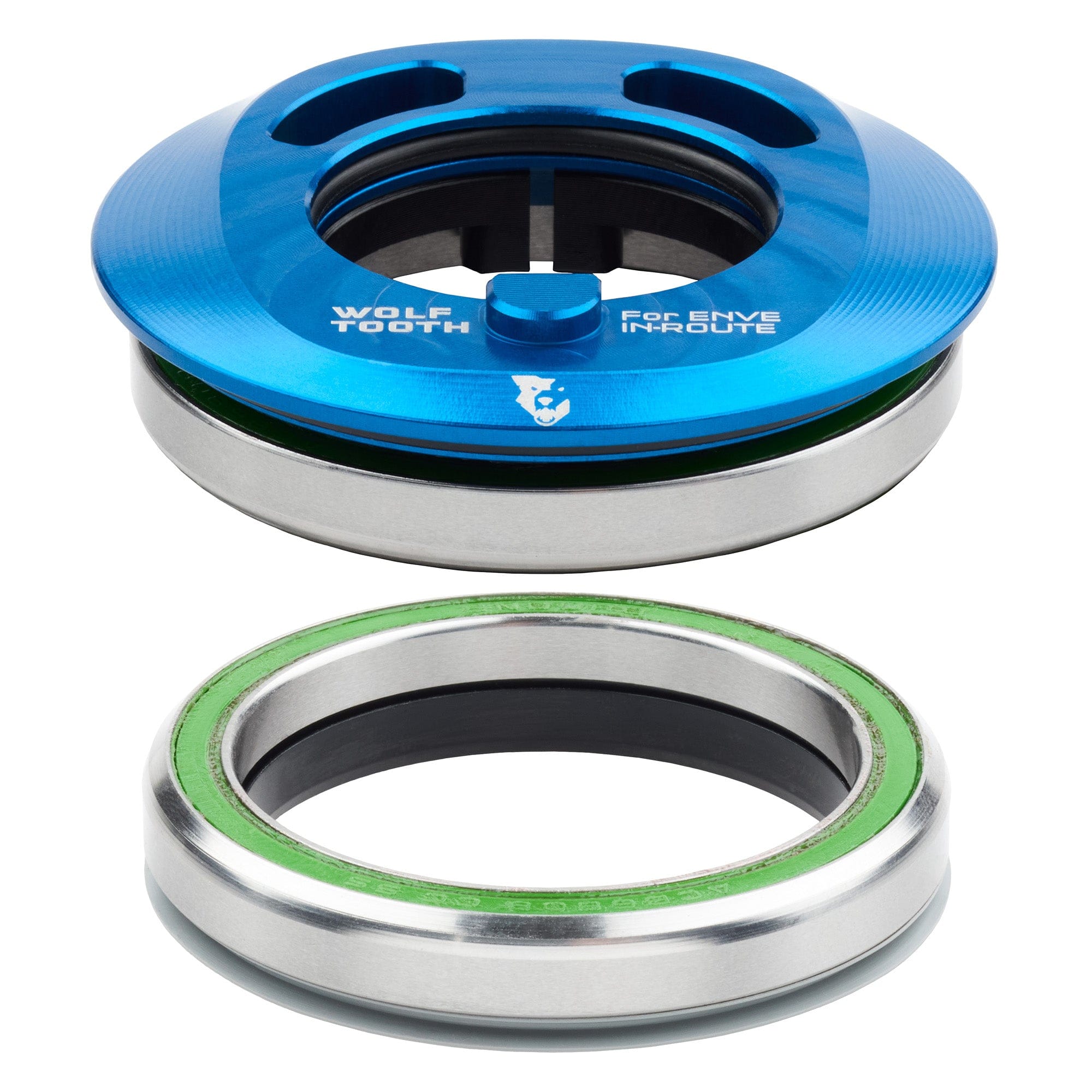

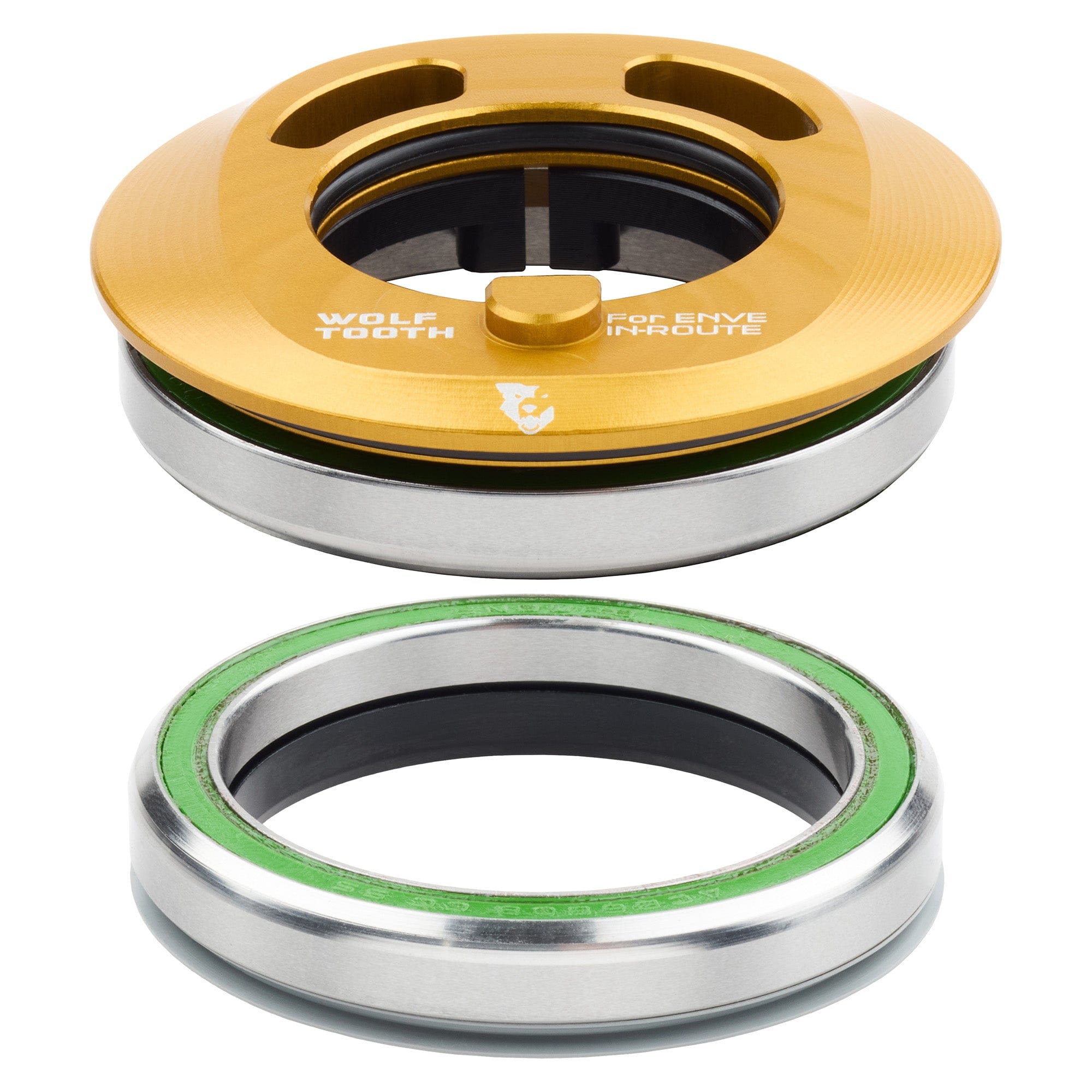

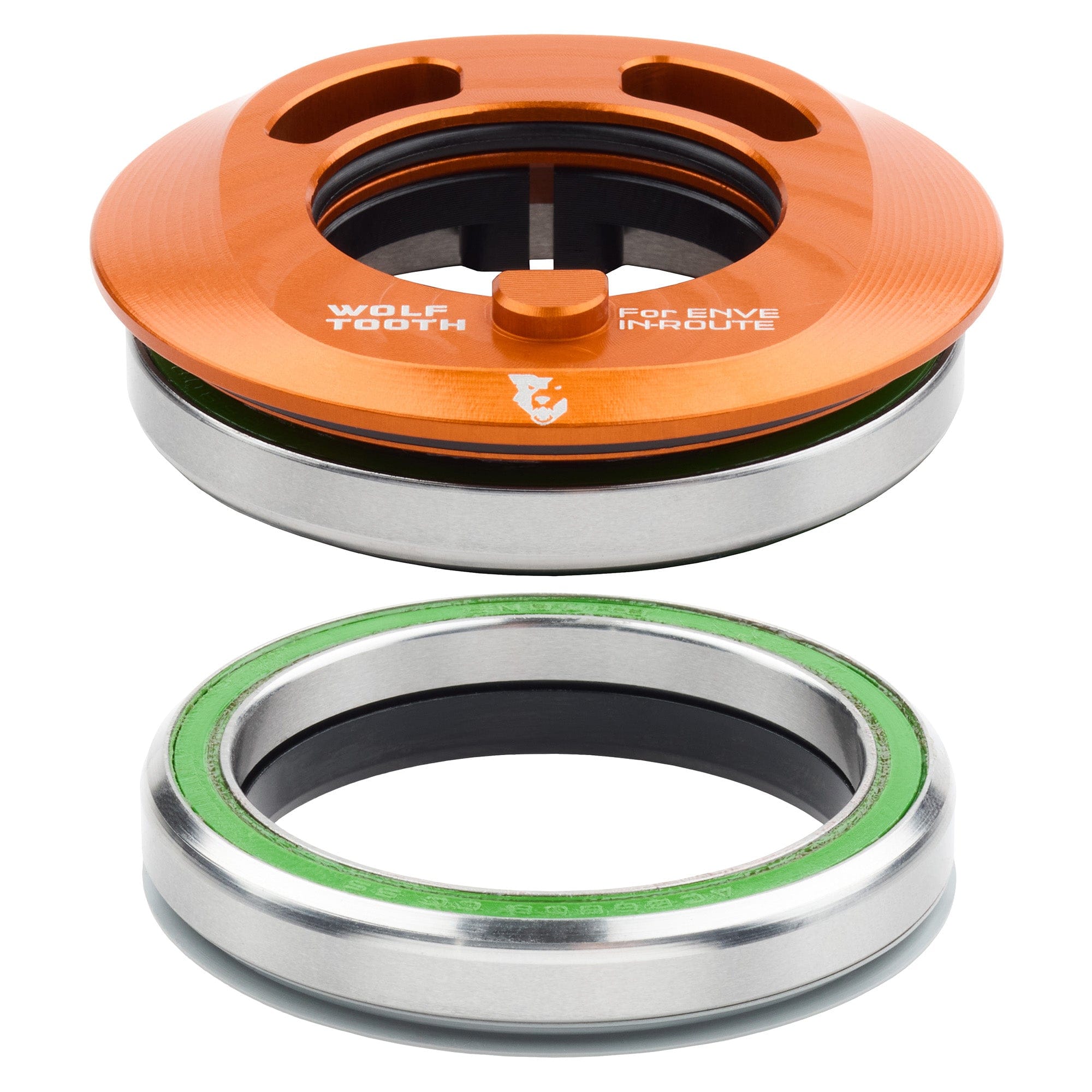

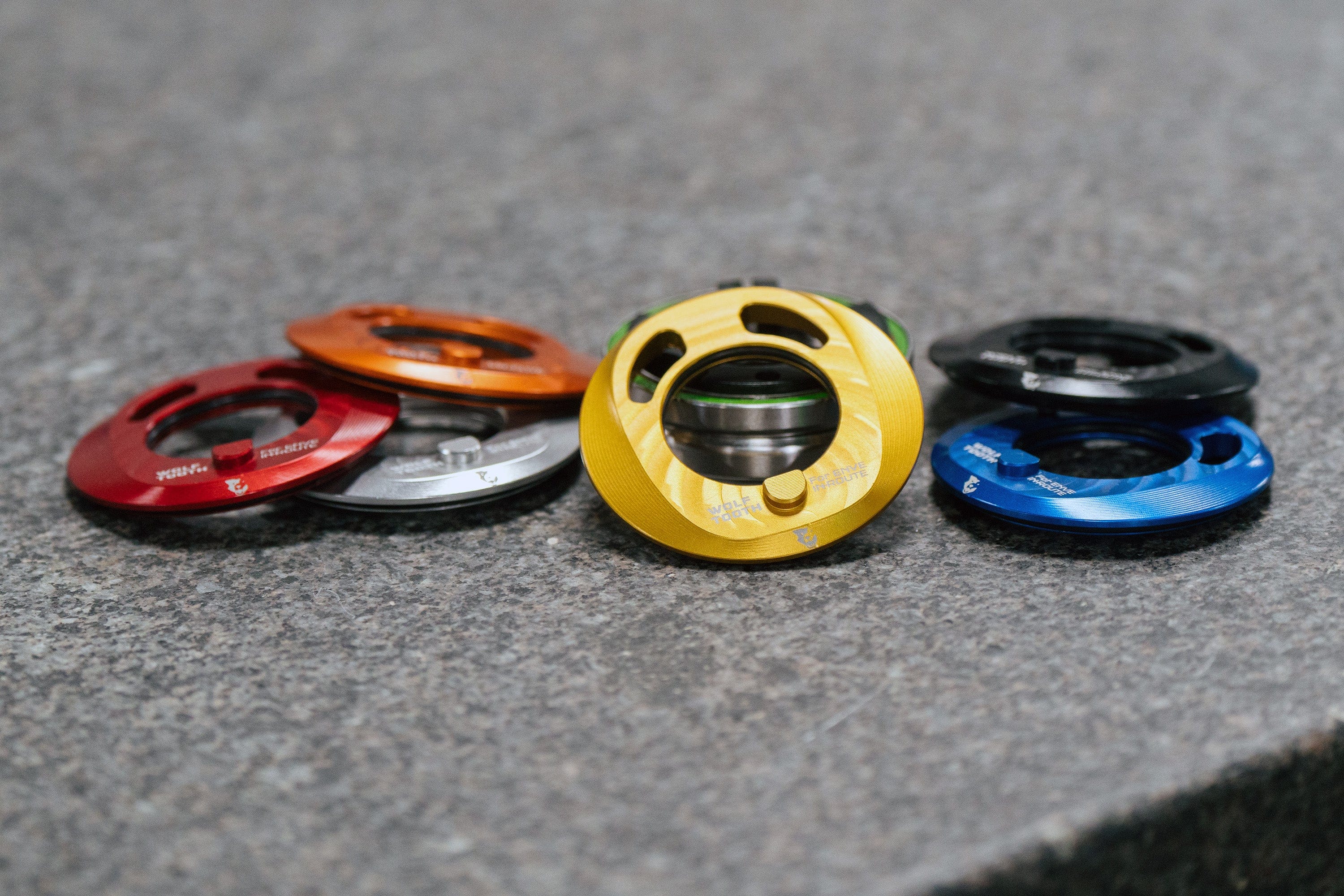

Our new Premium Integrated Headsets for the Enve IN-Route System are available in seven beautiful anodized colors that pair with our other Color Shop components.
Wolf Tooth Premium Internal Headsets for ENVE IN-Route System are designed and machined right here in our Minnesota headquarters with aircraft-grade 6061 aluminum. They are designed to have an ultra-low stack height, to be lightweight, and durable. Our headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. Available in a variety of colors. Premium Headsets with Enduro stainless steel bearings carry a lifetime warranty.
Compatibility
- Designed for the ENVE IN-Route System and compatible with bikes that use an IS52 upper / lower headset and a 1-1/8” to 1.5” tapered steerer tube (FITS ONLY ENVE In-Route System).
- Use top cap and split spacers provided with ENVE stems and one-piece cockpits.
- Use the compression plug that comes with your fork.

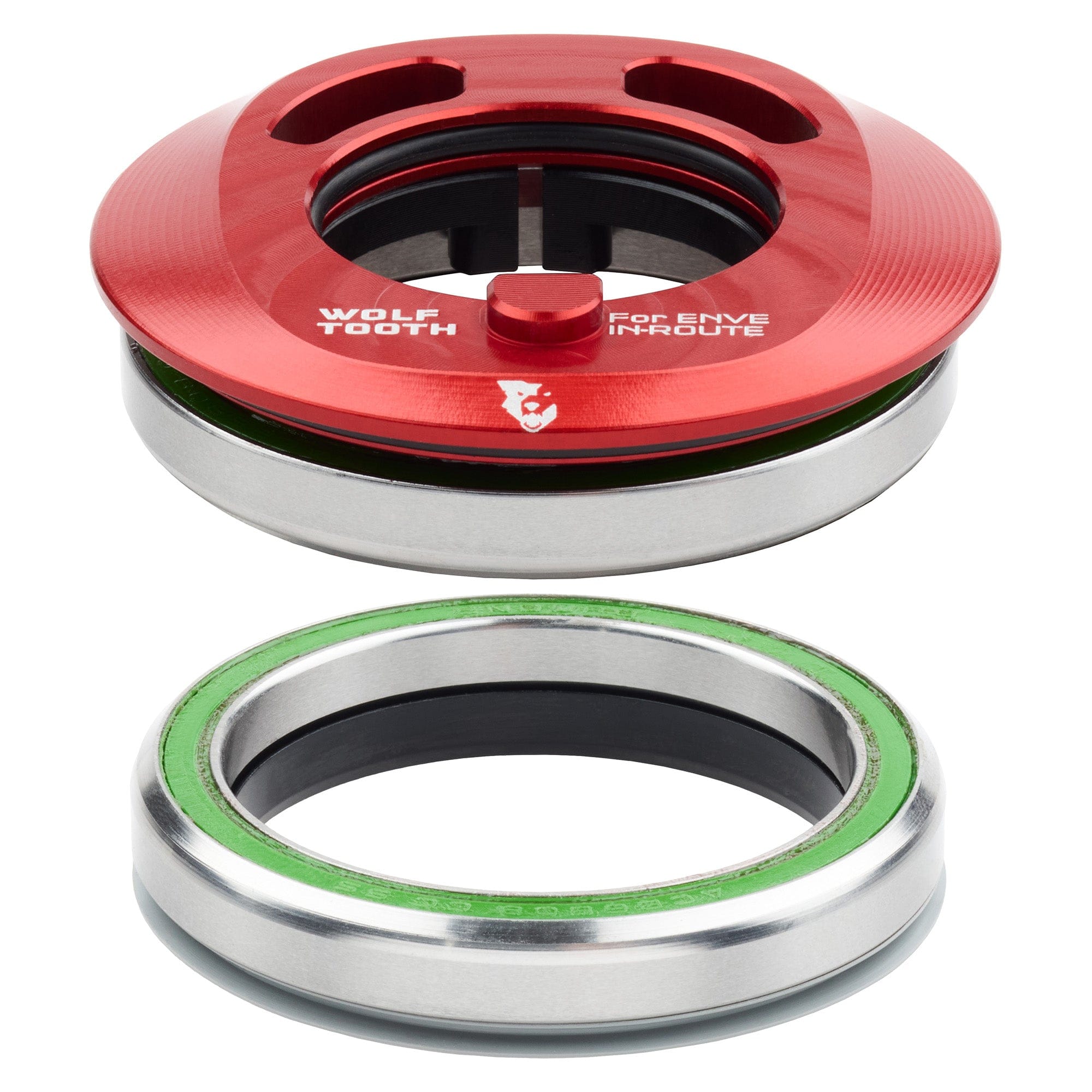

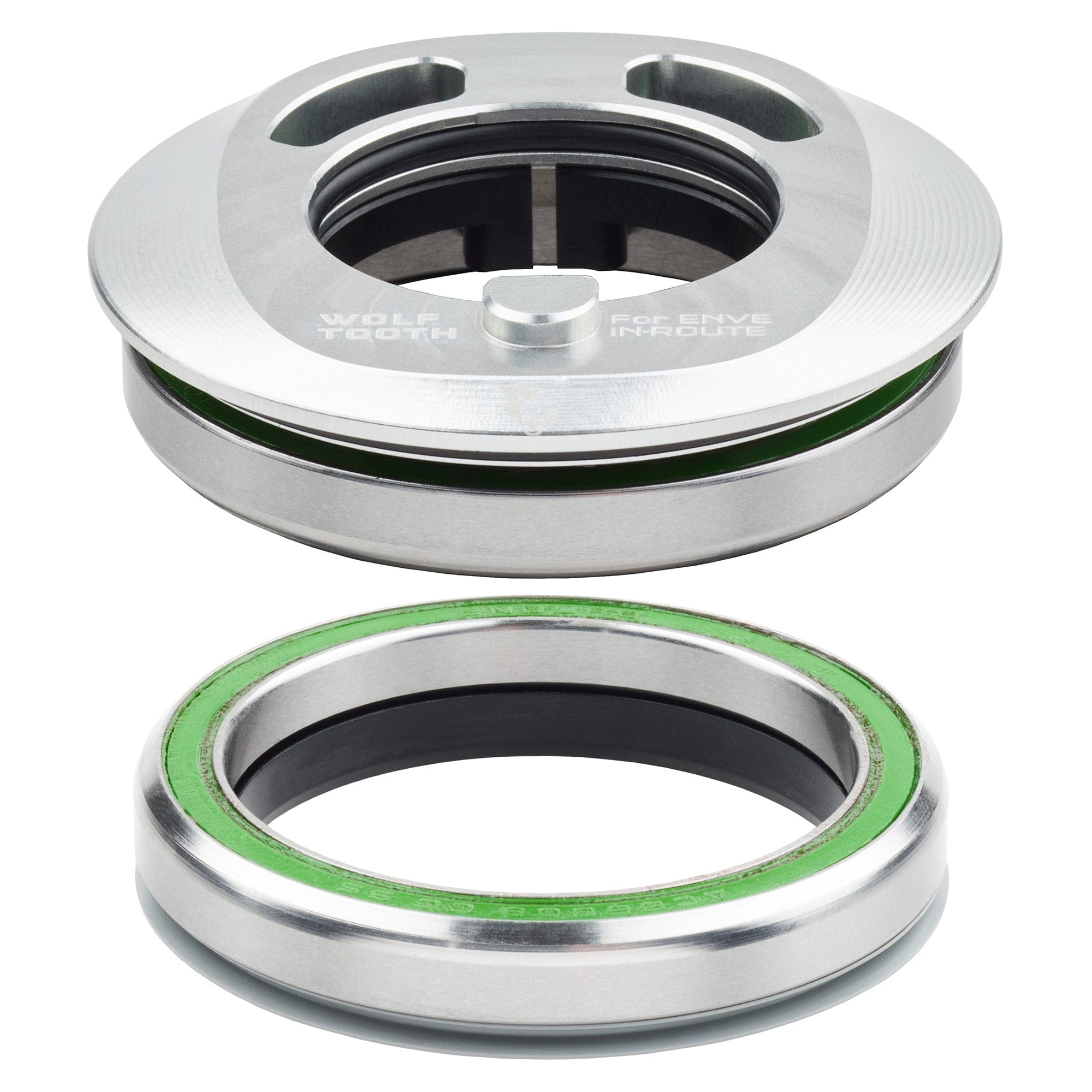

- Sold as a complete upper and lower IS52 Headset.
- Enduro stainless steel bearings included.
- Two 0.5mm spacers are included to dial in headset compression if necessary.
Tech Specs
Material: 6061 Aluminum
Dimensions:
- Total Stack Upper Headset - 3.5mm
- Total Stack Lower Headset - 0mm
- For Headtube Internal Diameter - 52mm
- 52mm 36x45 Upper And Lower Bearings
Weights:
- Upper Headset - 50g
- Lower Headset - 28g
- Complete Headset - 78g
Features:
- Premium Enduro stainless steel bearings.
- Available in seven Wolf Tooth anodized colors to match other Wolf Tooth components.
-

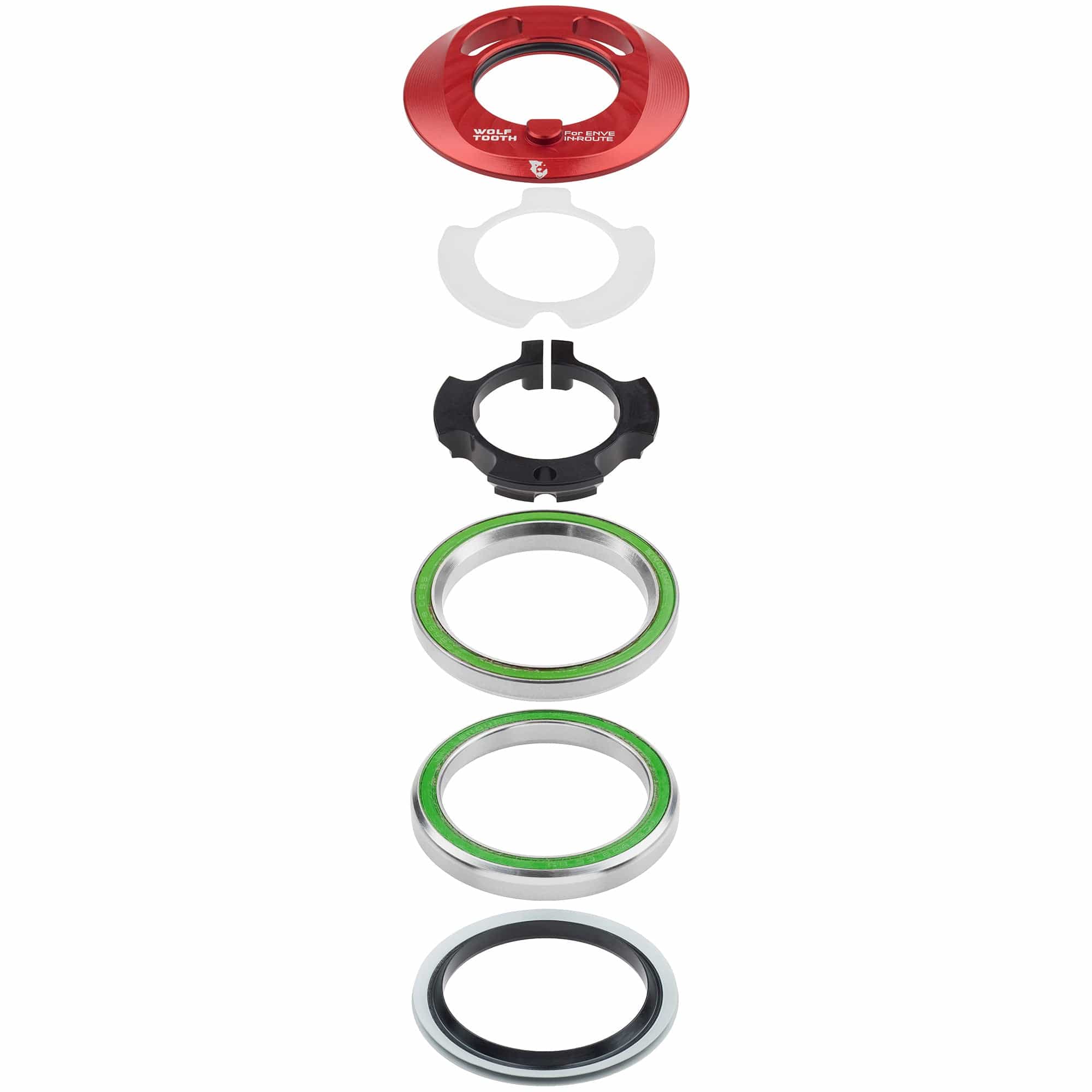

Designed with the Wolf Tooth triple-sealed system present on all other Wolf Tooth headsets:
- Internal o-ring top cap seal prevents water intrusion around the steerer tube.
- Custom-molded upper cup lip seal provides additional protection for the upper bearing.
- Custom molded dual-lip seal on the crown race to protect lower bearing in the toughest conditions.
- Contact sales@wolftoothcomponents.com for fitment and compatibility questions.
Made in the USA
Patent and trademark information
