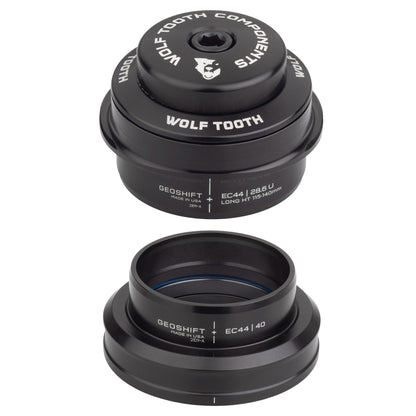

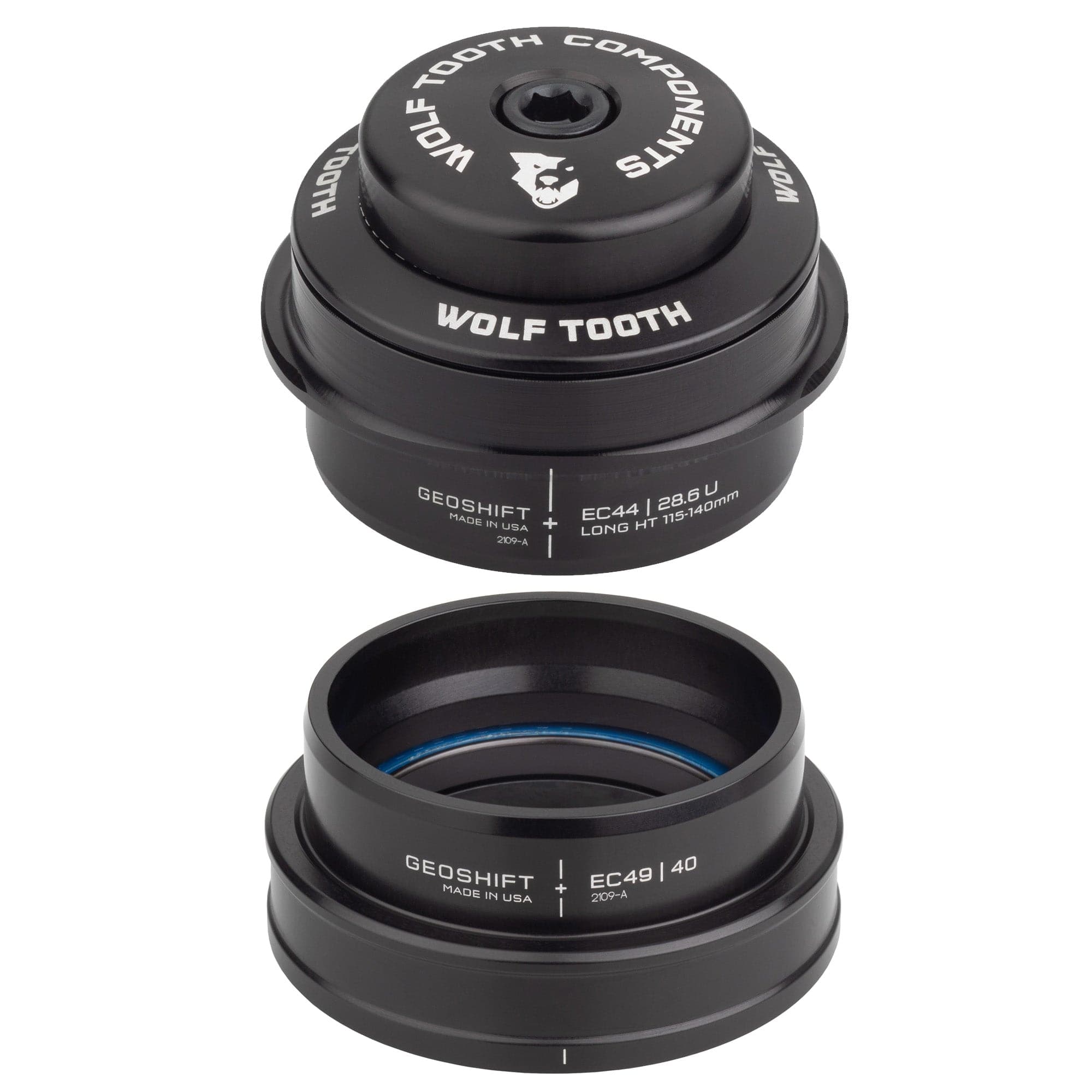

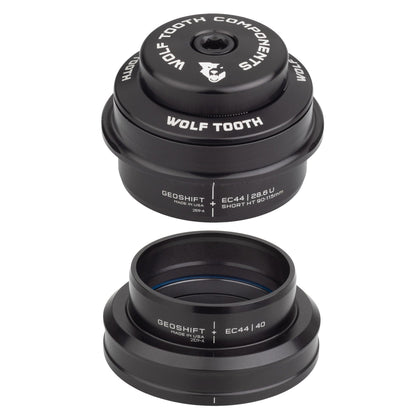

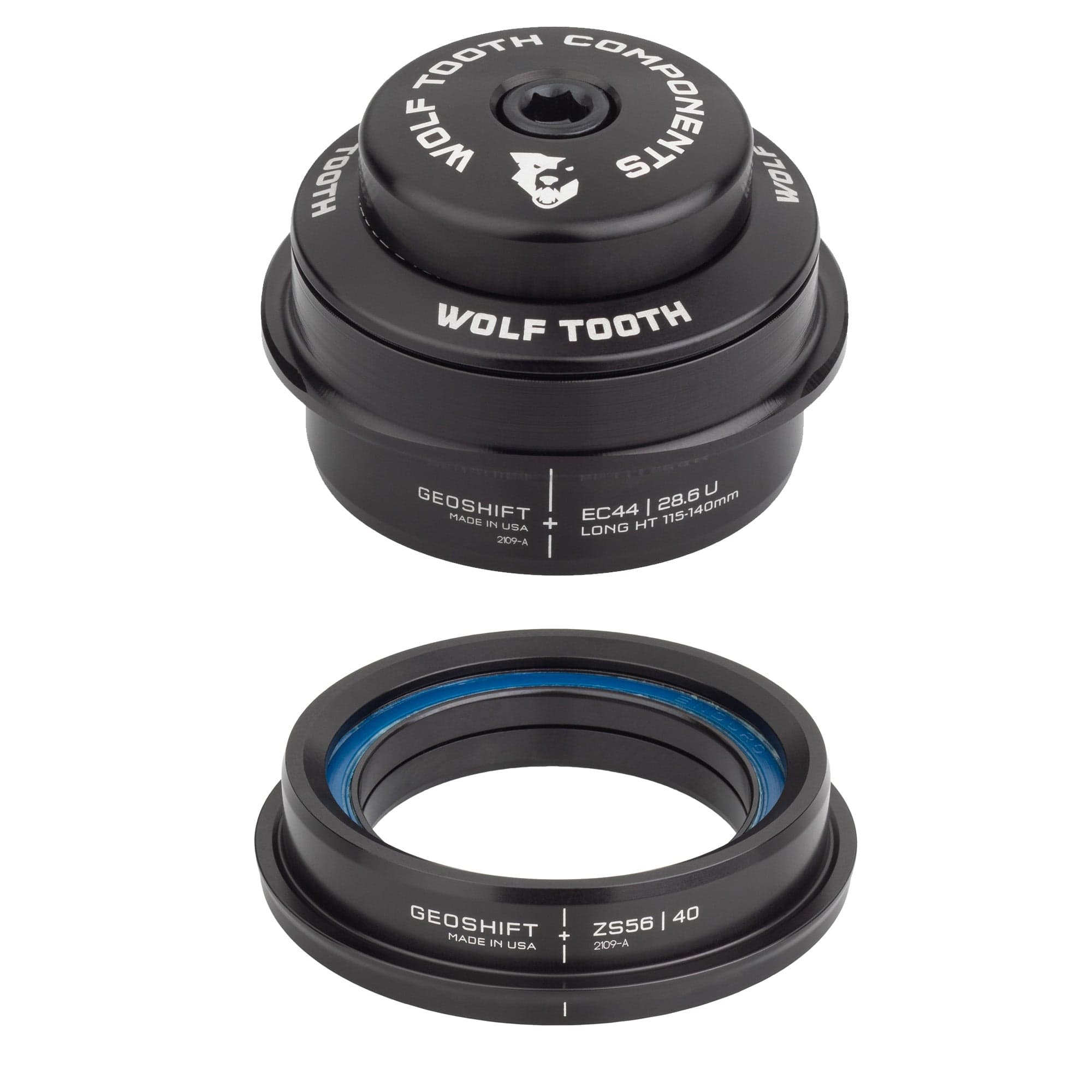

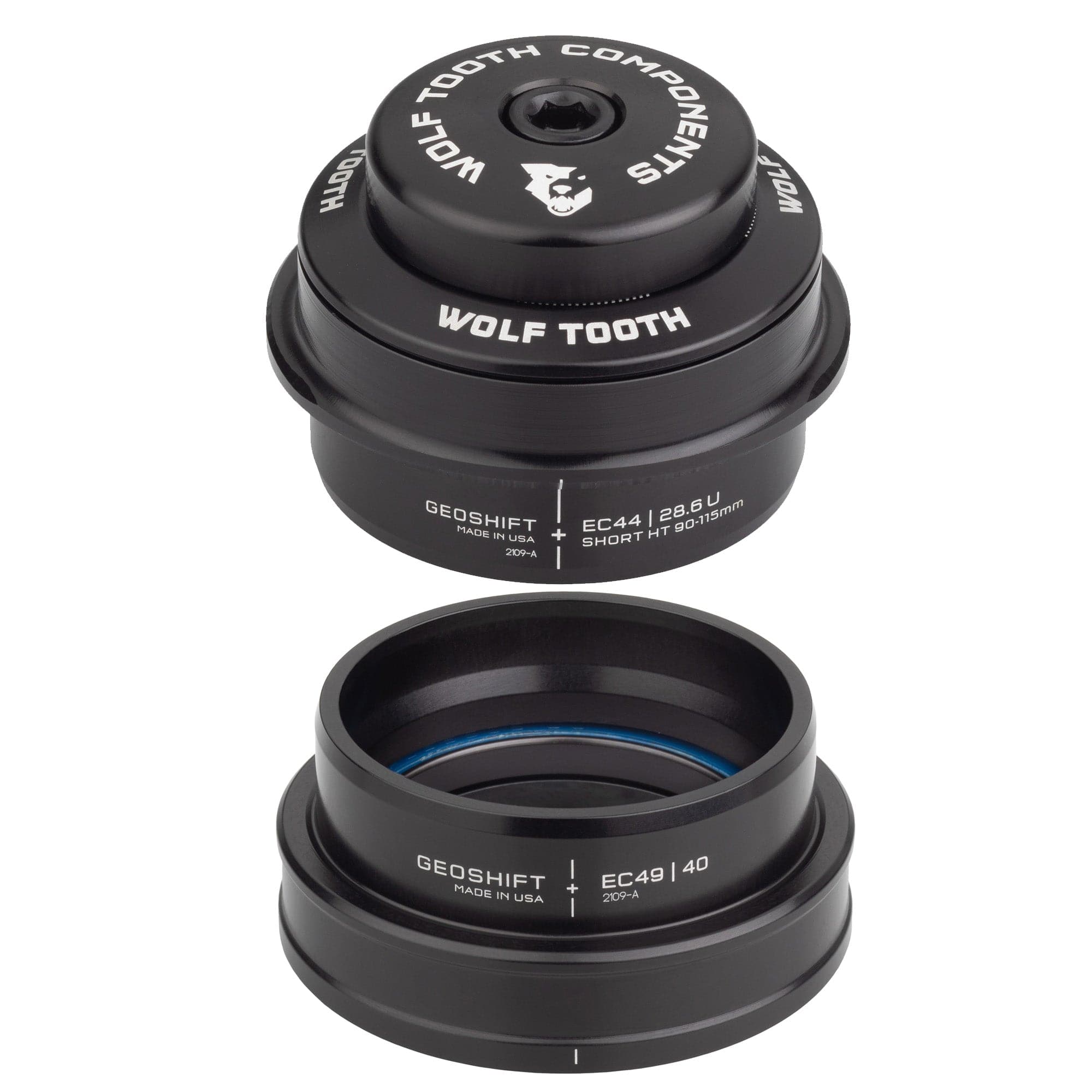

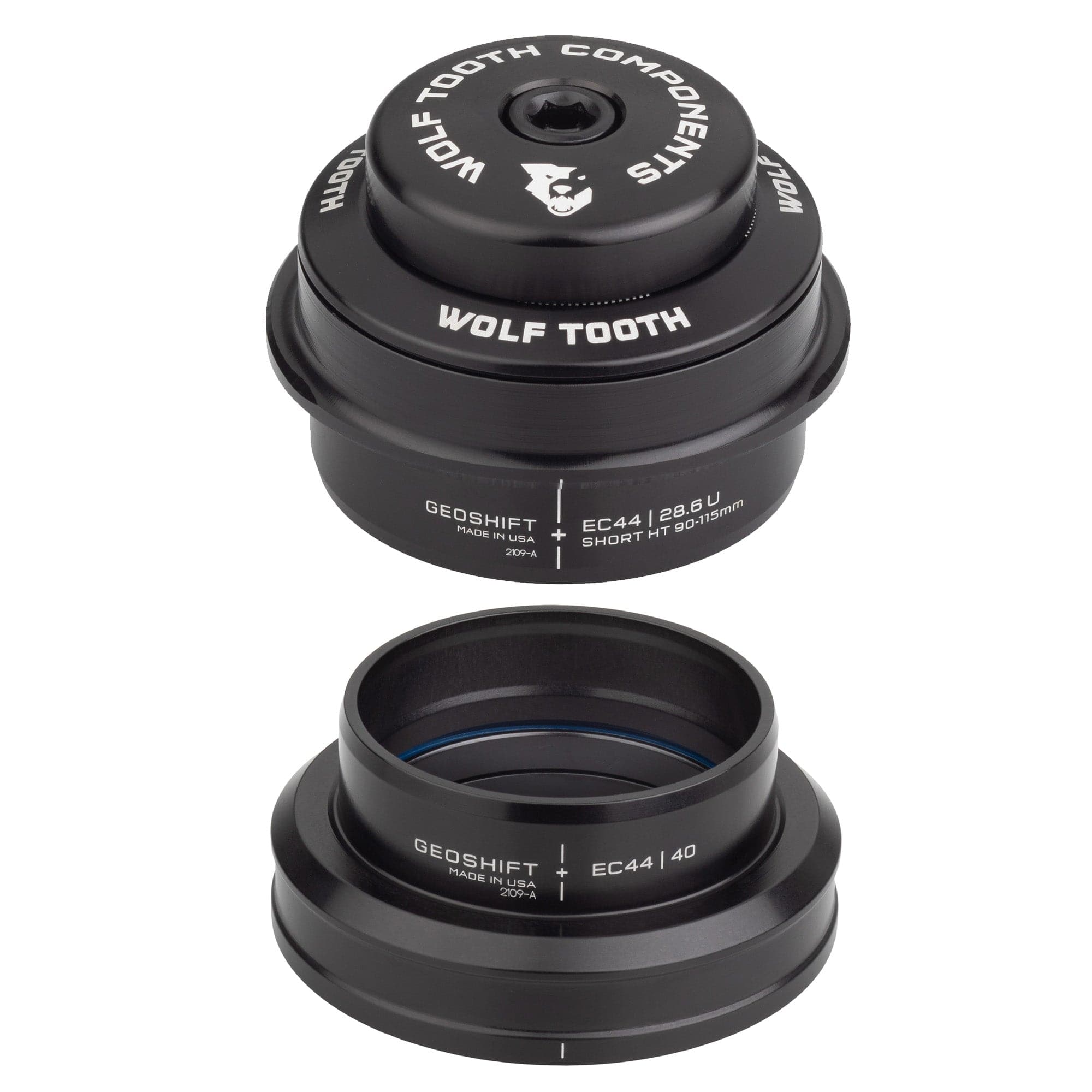

Wolf Tooth 2 Degree GeoShift Performance Angle Headset
Adjust the geometry of your bike by changing the head tube angle by 2º with the GeoShift 2º Performance Angle Headset. It allows you to change the head tube angle by -2º to make for a slacker geometry for added stability on fast descents, or by +2º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

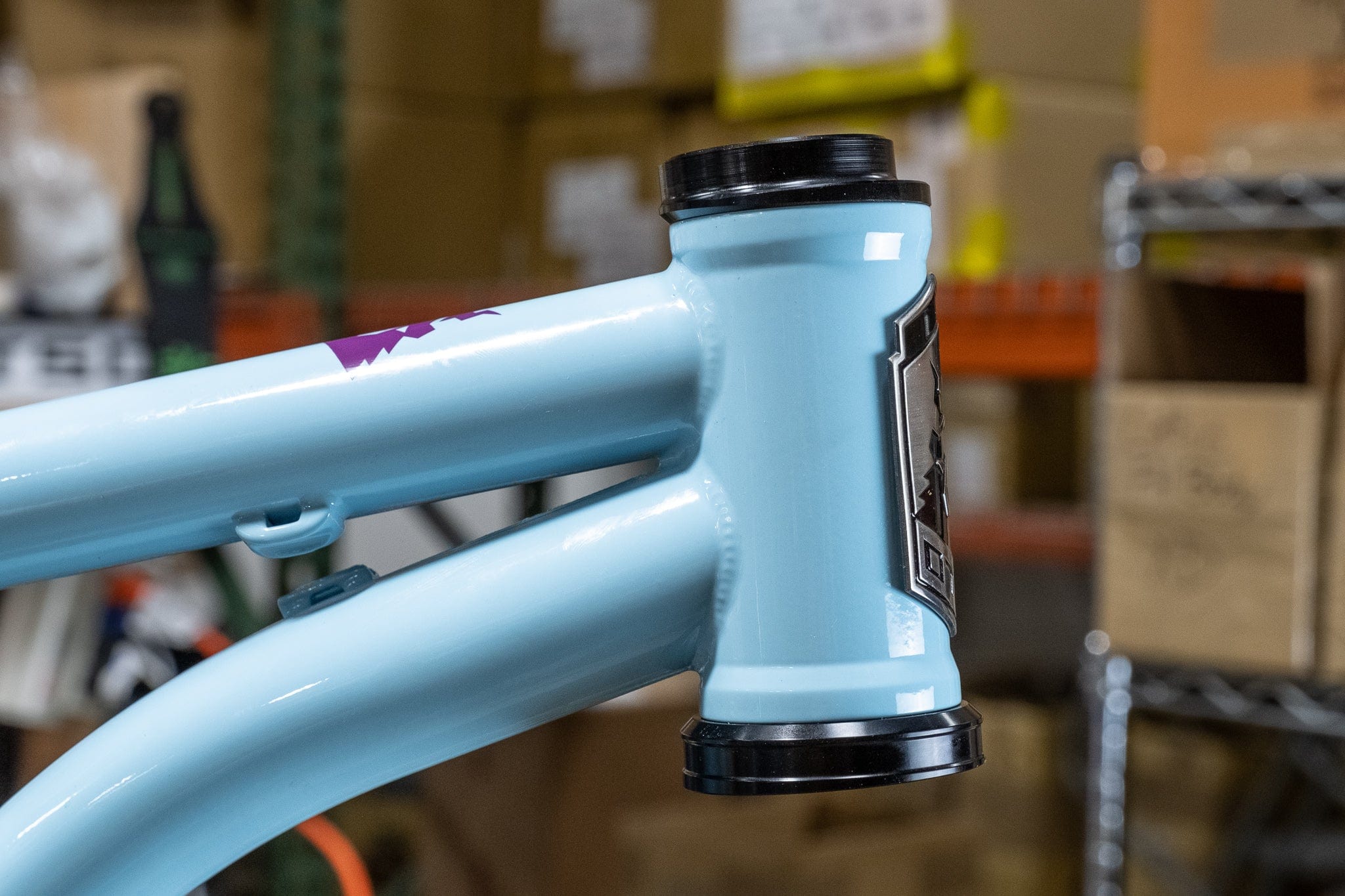

Animation shows stock head tube angle (wheel closer to down tube) compared with slacker head tube angle after installation of GeoShift Performance Angle Headset (wheel further from down tube)

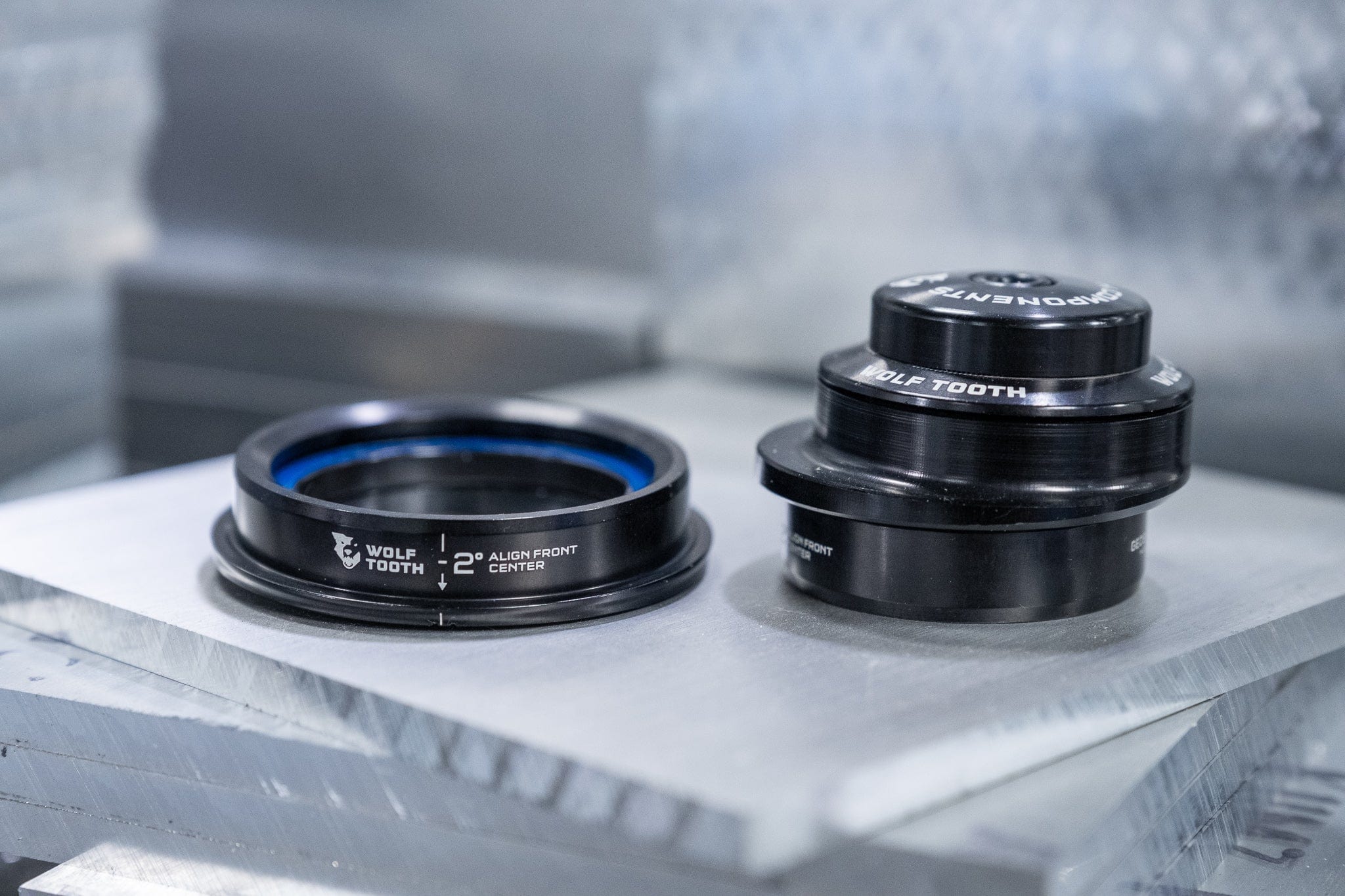

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. This design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.
Wolf Tooth headsets are machined in the USA with lightweight, strong, durable 6061 aluminum. Our Performance Headset is built to include an Enduro black oxide coated chromium steel bearing, a one-year warranty, and three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset.
Compatibility
- Compatible with frames that use EC and ZS press fit headset cups.
- Not compatible with frames that use IS (integrated style) headsets. (The headset bearing sits directly in the head tube without an aluminum cup on frames that use IS headsets).
- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately; never use a star nut on a carbon steerer tube)
- Consult compatibility guide and measurement guide to determine which headset will fit your bike.
Upper assembly features:
- Ultralight Stem Cap With Integrated Spacer plus an aluminum bolt and a star nut
- O-ring seal prevents water intrusion around the steerer tube
- Custom-molded upper lip seal provides additional protection for upper bearing
- Optional shim washers if needed
Lower assembly features:
- Custom-molded dual-lip seal on the crown race to protect lower bearing in the toughest weather and trail conditions
- Service and additional parts available
Recommendations
The Wolf Tooth crown race adapter will help avoid damaging the crown race seals. Use the included installation drifts/guides when pressing in headset cups.
Related Products
Tech Specs
Weight: ZS44/28.6 Upper, ZS56/40 Lower • 92g | ZS44/28.6 Upper, ZS44/28.6 Upper, EC49/40 Lower • 107g
Material: 6061 aluminum
Bevel Angle: 36 degrees

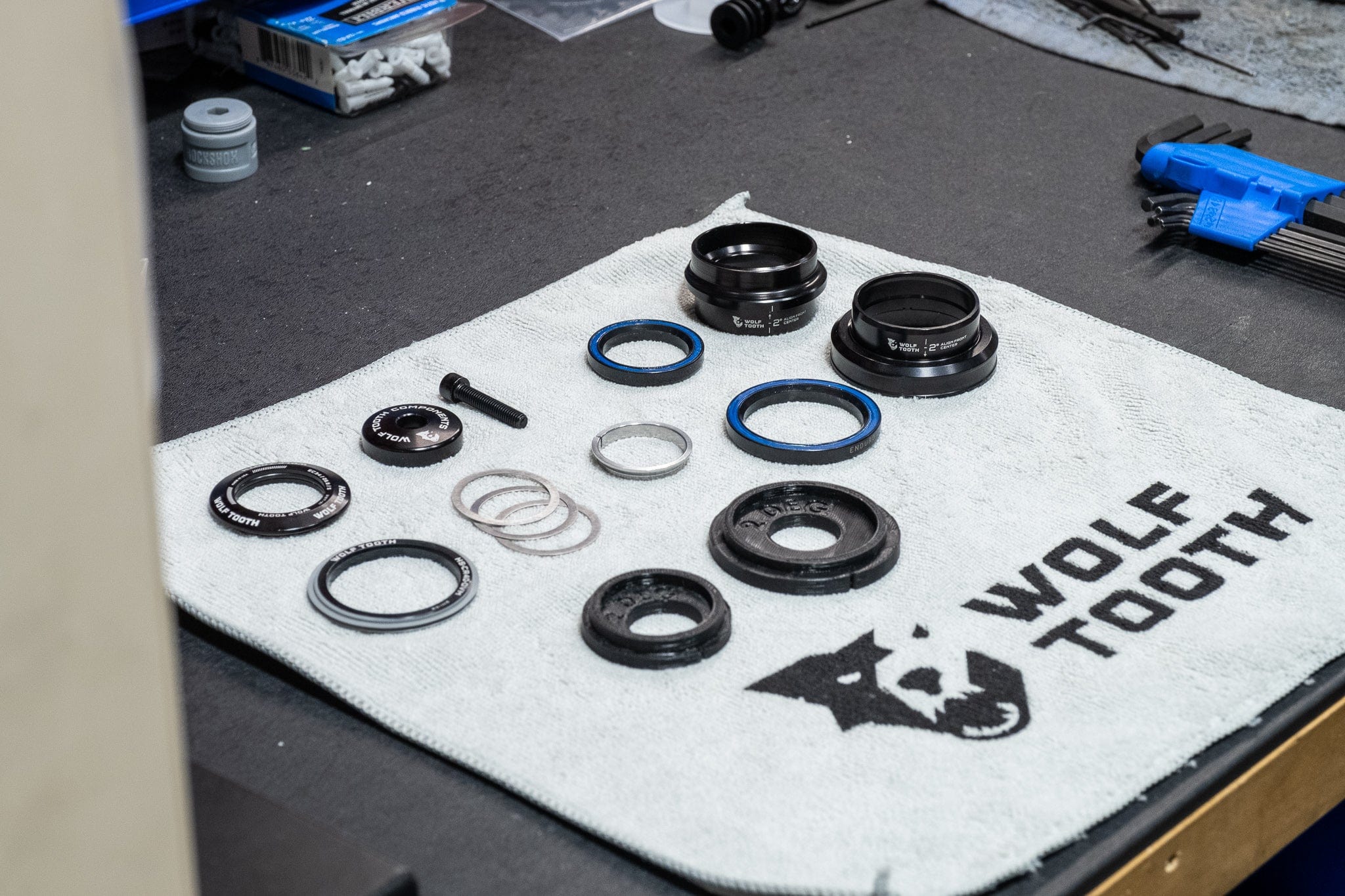

Includes: Installation drifts/guides, upper and lower cups, bearings, crown race, star nut, three shims, stem cap with 5mm integrated spacer and bolt (weight listed does not include star nut, shims, or stem cap)
Stem Cap Bolt Torque Spec: 2-3 Nm with light grease on threads only
Made in the USA
