102 BCD Chainrings for XTR M960
10232
Pairs well with
Free WT-1 With Chainring Purchase
Add any chainring and a .5 fl oz bottle of WT-1 to your cart, then enter code 'WT1LastsLonger' at checkout to get your free WT-1 Chain Lube.
Promotion Expires 12-31-2024

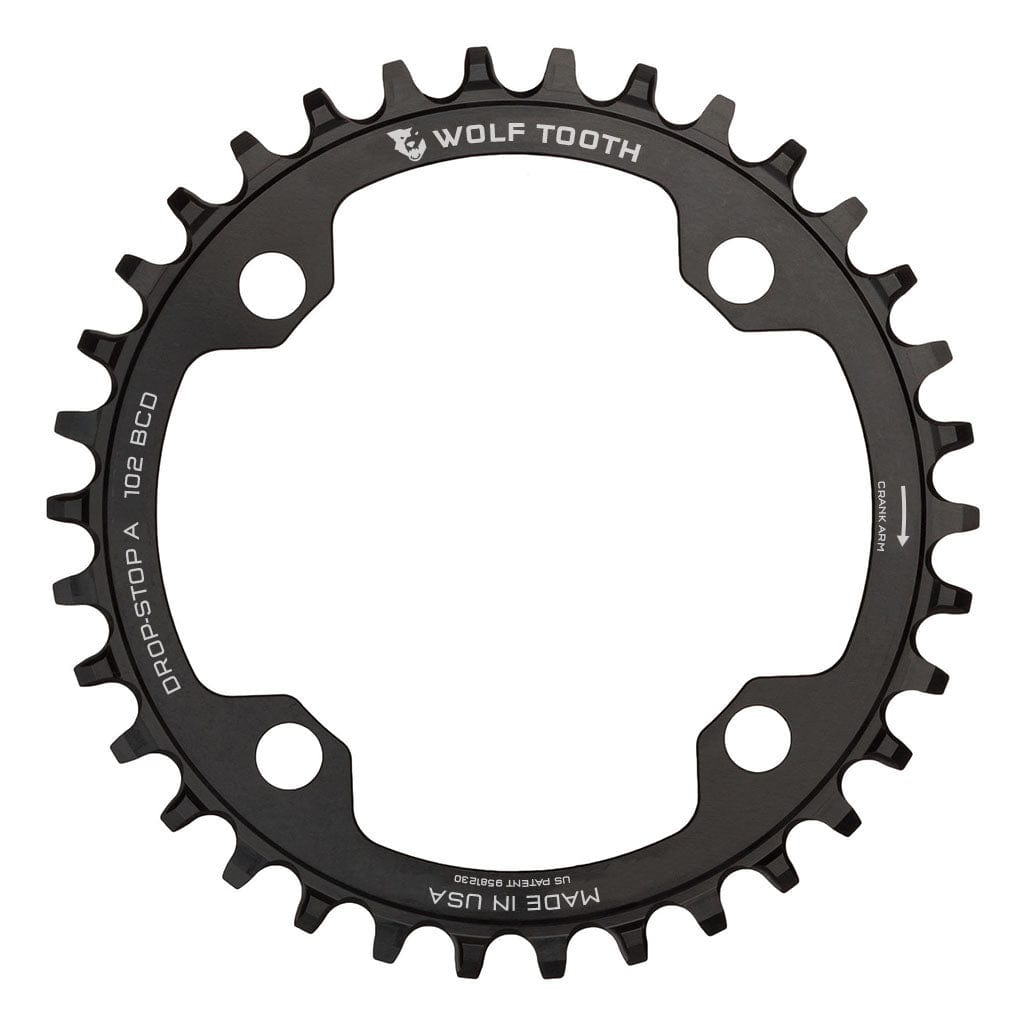

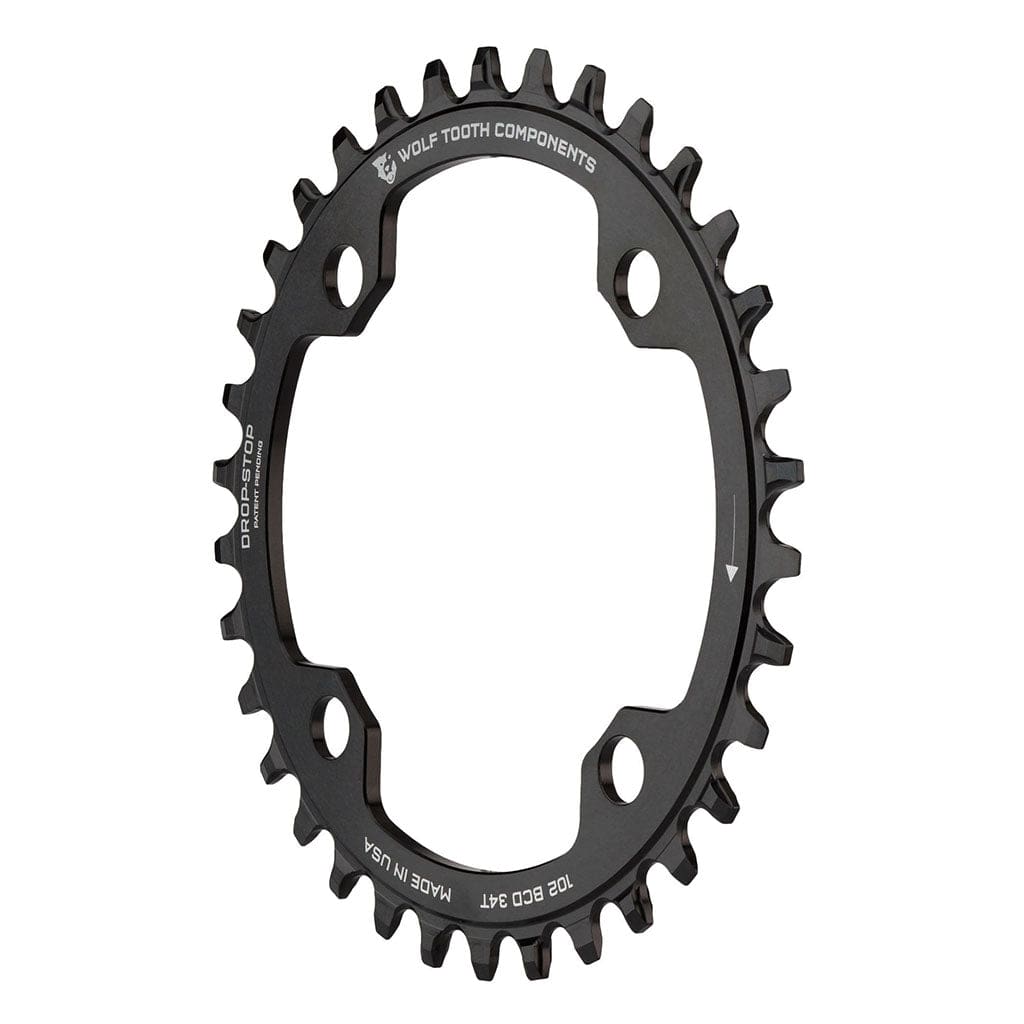

The 102BCD chainring was made specifically for the XTR M960 crankset
-
Only fits on the M960 crankset in the middle ring position
-
Drop-Stop® technology. On Wolf Tooth’s patented wide/narrow chainring, the front side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow back side allows clearance for mud and debris which reduces friction
-
Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility

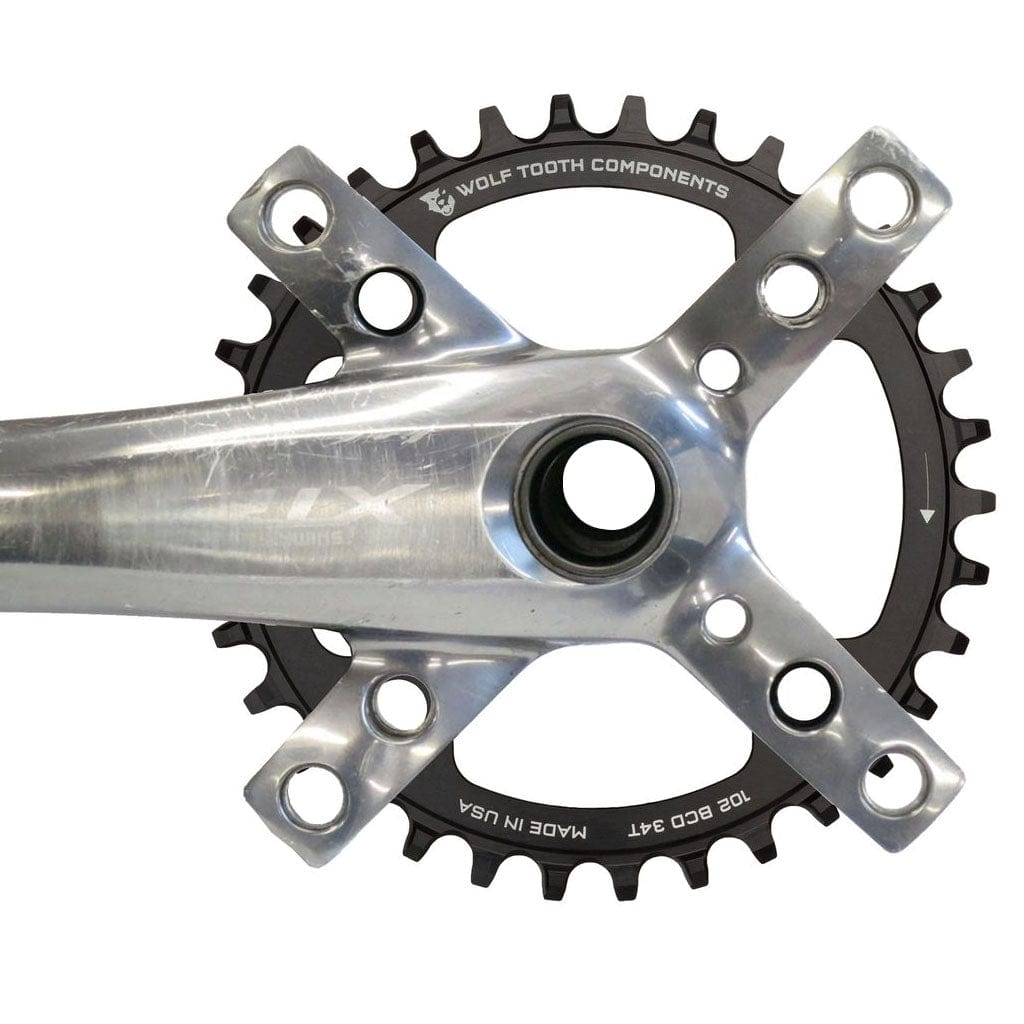

- These rings only fit on the M960 crankset in the middle ring position
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention)
- 6mm Chainring bolts needed
- Chainline: 50mm
Recommendations
- If you plan to ride in very muddy conditions, try using a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck
Related Products
Tech Specs
Weight: 32t • 47g | 34t • 56g
Material: 7075-T6 aluminum
Made in the USA
Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.
| Tooth Profile | |||
|---|---|---|---|
Tooth Profile |
Drop-Stop® B |
Drop-Stop® A |
Drop-Stop® ST |
| Chain Compatibility | |||
Chain Compatibility |
All 9s, 10s, and 11s Chains 12s Chains:
Not compatible with 12s Shimano HG+, 12s KMC, or 13s Campagnolo chains |
All 9s, 10s, and 11s Chains 12s Chains:
You can use Drop-Stop B when Drop-Stop A is not available* Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains |
12s Chains:
Not compatible with all other chains |
| Details | |||
Details |
 Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment. Drop-Stop B Chainrings |
 The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment. Drop-Stop A Chainrings |
 Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B. Drop-Stop ST Chainrings |
*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with SRAM Road and Transmission (T-type) Flattop chains.
