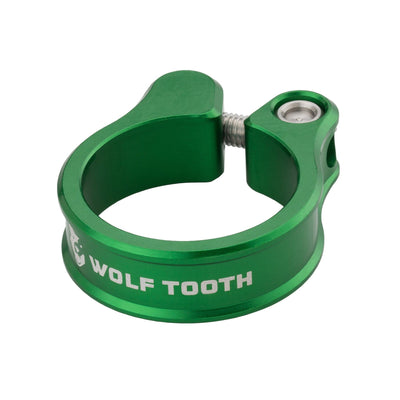

Seatpost Clamp - Green
SC-29-GRN
Pairs well with
Seatpost Clamp - Green
The precision-engineered Wolf Tooth Seatpost Clamp secures your seatpost and looks good doing
it. At the heart of this seatpost collar are our custom self-aligning bolt and anchor. The M5 bolt
includes spherical washer and mates with a cylindrical anchor barrel. This means that threads are always
perfectly aligned, preventing binding and ensuring consistent clamping force.
Machined from 6061
aluminum in our Minneapolis facility, this Wolf Tooth Seatpost Clamp is available in two sizes.
Compatibility
Clamping Diameter:
- 28.6mm/29mm
- 29.8mm/30mm
- 31.8mm/32mm
- 34.9mm/35mm
- 36.4mm
- 38.6mm/39mm
- 39.7/40.0mm
Frames may vary slightly from the nominal diameters due to tolerances and paint thickness. Clamps will fit on frames that are within +/- 0.5mm of specified size. For example, a 34.9mm clamp will fit frames with a seat tube measuring from 34.4mm to 35.4mm in diameter.
Clamping height: 13.5mm
Not compatible with Ibis carbon bike frames.

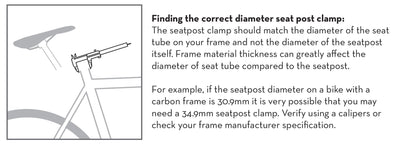

Note: The seatpost clamp should match the diameter of the seat tube on your frame and not the diameter of the seatpost itself.
Related Products
Tech Specs
Weight: 29.8mm • 18g | 31.8mm • 19g | 34.9mm • 20g
| 36.4mm • 20g | 38.6mm • 21g | 39.7 •
24g
Material: 6061 T6 aluminum, M5 stainless steel bolt with integrated
washer
Tool interface: 4mm hex key
Torque spec: 6 Nm Max
Made
in the USA
