94 mm BCD for 5-bolt Cranks
SUR5-9432
Pairs well with
94 mm BCD for 5-bolt Cranks
Free WT-1 With Chainring Purchase
Add any chainring and a .5 fl oz bottle of WT-1 to your cart, then enter code 'WT1LastsLonger' at checkout to get your free WT-1 Chain Lube.
Promotion Expires 12-31-2024
This 94 BCD 5-bolt ring will serve all your Vintage crankset and Surly OD crankset needs.
-
Fits any 94 BCD 5-bolt crankset (modification may be needed)
-
Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
-
Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility

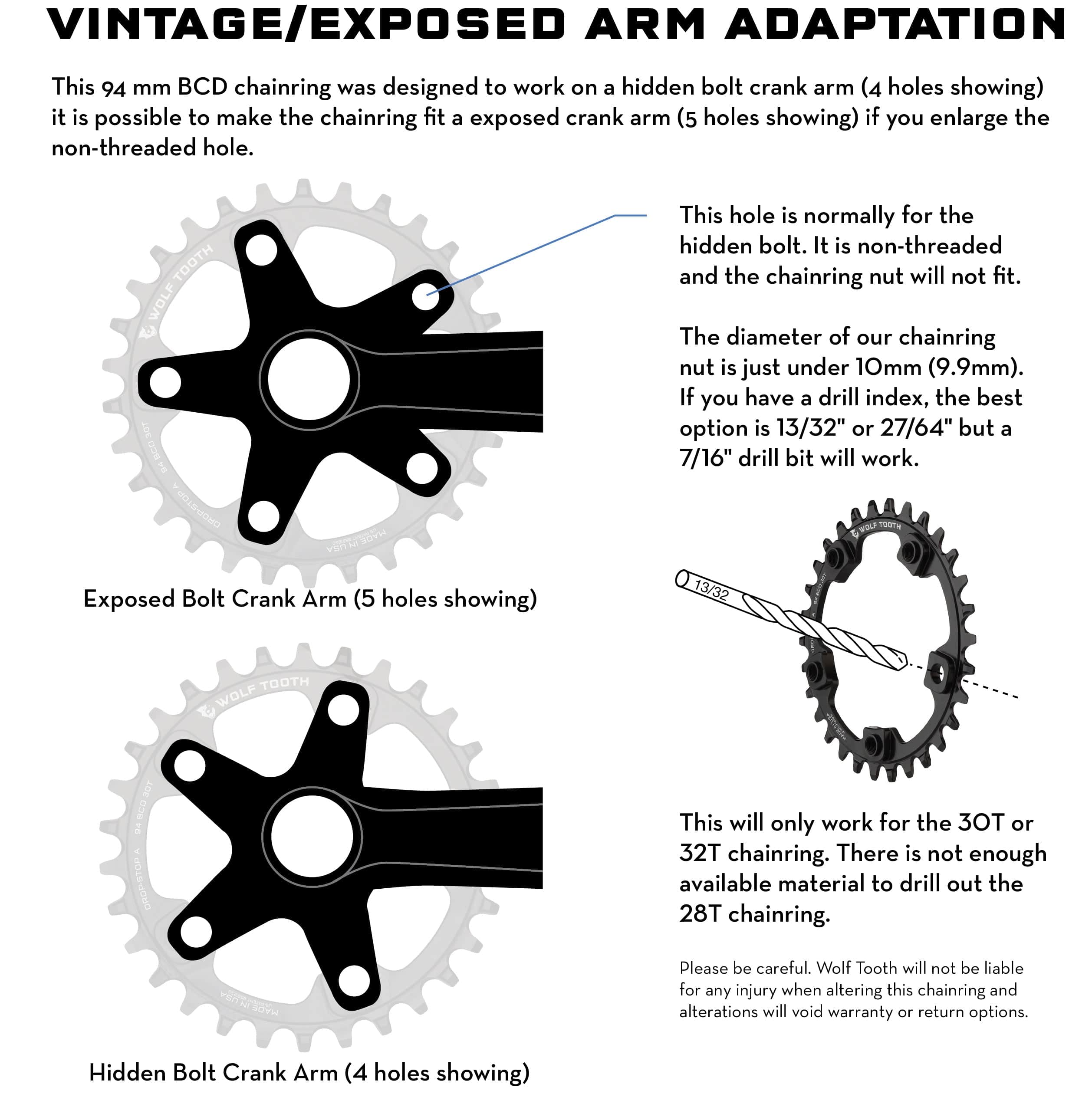

- Four of the holes are threaded and one is a normal through bolt hole (done for Surly compatibility). Use a stock 10mm chainring bolt for the fifth, hidden arm.
- These rings fit any 94 BCD 5 bolt crankset (possible alterations needed to fit some crankarms)
- For Plus size bike applications with the Surly OD crankset, e.g. Instigator and Krampus, you will need to use the stock spacers (Spacer Kit QBP Part number CR8609) that came with your 1x setup. You will also need some 16mm bolts which can be purchased from Problem Solvers.
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provides a great chainline on most boost bikes.
- Chainline (approximate as BB centering and cranksets vary)
Recommendations
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
Related Products
Chainring bolts that are optimized for 1x
- For use with Surly OD cranks on fat bikes - our 10mm bolts are optimized for mounting this ring
- For use with vintage cranksets we recommend a set of our 10mm bolts and you will use your existing bolt/nut for the 5th hole.
- No Wolf Tooth bolts available for Plus size bike applications with the Surly OD crankset (see compatibility notes above)
Tech Specs
Weight: 28t • 37g | 30 • 48g | 32t • 57g
Material: 7075-T6 aluminum
Made in the USA
Wolf Tooth is committed to provide the most precision components possible and has three different tooth profiles for optimal performance based on your chain type.
| Tooth Profile | |||
|---|---|---|---|
Tooth Profile |
Drop-Stop® B |
Drop-Stop® A |
Drop-Stop® ST |
| Chain Compatibility | |||
Chain Compatibility |
All 9s, 10s, and 11s Chains 12s Chains:
Not compatible with 12s Shimano HG+, 12s KMC, or 13s Campagnolo chains |
All 9s, 10s, and 11s Chains 12s Chains:
You can use Drop-Stop B when Drop-Stop A is not available* Not compatible with 12s SRAM Transmission (T-Type) and Road Flattop, 12s Shimano HG+, 12s KMC, 12s Campagnolo, or 13s Campagnolo chains |
12s Chains:
Not compatible with all other chains |
| Details | |||
Details |
 Tooth shape is nearly identical to Drop-Stop A, but has narrower teeth. Valley between teeth is deeper to accommodate larger rollers on Flattop chain. Outside faces of narrow and wide teeth touch chain to guide alignment. Drop-Stop B Chainrings |
 The original Drop-Stop tooth profile. The wide teeth are wider than Drop-Stop B. Outside faces of narrow and wide teeth guide chain alignment. Drop-Stop A Chainrings |
 Narrower teeth than Drop-Stop A. Wide teeth use Symmetric Trapezoidal (ST) profile to match extended inner edge on chain to create alignment (outside faces of wide teeth do not touch). Interaction of narrow teeth and chain are similar to Drop-Stop A and B. Drop-Stop ST Chainrings |
*We are in the process of migrating most Drop-Stop A to Drop-Stop B to make them compatible with SRAM Road and Transmission (T-type) Flattop chains.
